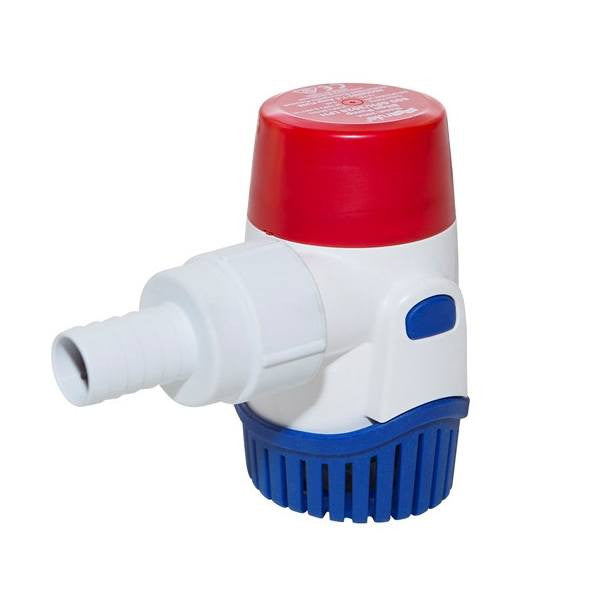

Rule 800 Gph Std Pump 12V

Rule Non-Automatic 800 GPH Bilge Pump 20DA

Rule non-automatic bilge pumps pumps deliver ultimate pumping performance in an easy-to-install pump. It has an optimized impeller to provide great flow at the same amperage. This bilge pump features back flow prevention to reduce the amount of water left over in the bilge. This reduces odor and helps keep the bilge cleaner. Hidden air vents within the body help prevent air locking in challenging plumbing installations and helps with the check valve. The threaded discharge provides easier installation and easier maintenance, while the snap-lock strainer base allows for easier cleaning. This pump also features a built in thermal cut-off which provides added protection to the pump and vessel.

Features:

Thermal cut-off

Back flow prevention

Threaded discharge

Easy-clean

Marine-grade blocked wiring

Ignition protected

Long-life motor

Completely submersible

Rust and corrosion protected

Silent operation

Stainless steel shafts

No burn-out when dry

Specifications:

Volts: 12 DC

Fuse size: 7.5 Amp

Amp draw @ 12 V: 3.4 amp

Amp draw @ 13.6 V: 4.3 amp

Port Type: 3/4" Hose Barb

Replacement strainer: Model 1232R

Panel switches: 41, 43, 45, 49

Float switches: 35A, 37A, 40A

4-38" H x 2-7/8" W

Click here for Rule standard 800 GPH 20DA Bilge Pump Instruction Manual
