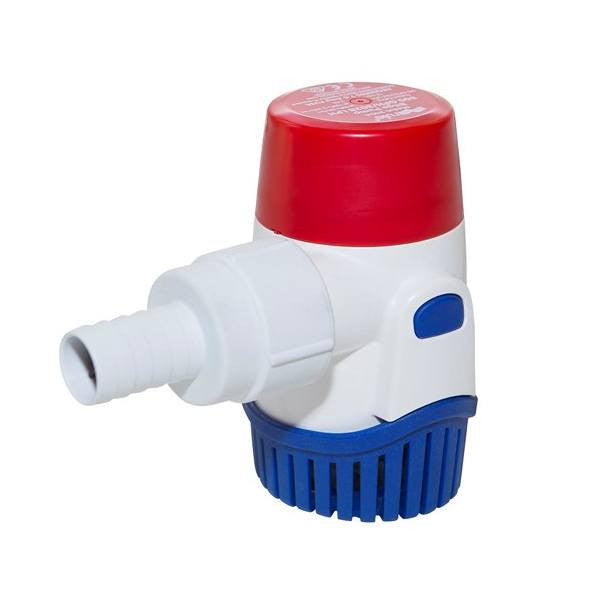

Rule Bilge Pump 800Gph-Auto

Rule Automatic 800 GPH Bilge Pump 20SA

Rule offers the 800 GPH (3028 LPH) pump in a round version. This pump features many mounting variations as well as a gas resistant strainer base. Float switches are not required for these fully automatic pumps. Controlled via built-in sensors, the pump will turn on every 2.5 minutes for about 1 second to sense for water. If water is present, the pump will sense resistance and continue to run until all water is removed. Power use in the checking mode is minimal for the peace of mind that this range of pumps offer.

The pump is completely submersible and has a tough plastic body. It features back flow prevention to reduce the amount of water left over in the bilge. This reduces odor and helps keep the bilge cleaner. Hidden air vents within the body help prevent air locking in challenging plumbing situations and helps with the check valve. This model features a snap-lock strainer base which makes it easy to clean and a thermal cut-off for added protection. The threaded discharge provides easier installation and easier maintenance.

Features:

Ignition protected

Long-life motor

Completely submersible

Rust and corrosion protected

Silent operation

Stainless steel shafts

Easy-clean

Back flow prevention

Thermal cut-off

Threaded discharge

Marine-grade blocked wiring

No burn-out when dry

No float switch needed

3 year warranty

Specifications:

Height: 4.7"

Width: 2.9"

Depth: 2.5"

Volts: 12 DC

Amp draw @ 12 V: 3.4

Amp draw @ 13.6 V: 4.3

Fuse size: 7.5 amp

Port size: 3/4" hose barb

Replacement strainer: Model 1232R

Panel switches: 41, 43, 45

Click here for Rule 27SA Automatic Bilge Pump Installation Instructions

Frequently Asked Questions

• What is the Rule Automatic 800 GPH Bilge Pump 20SA used for? The Rule Automatic 800 GPH Bilge Pump 20SA is a fully automatic, completely submersible bilge pump designed to remove water without requiring a separate float switch. Its built-in sensors periodically check for water, while the pump provides an 800 GPH (3028 LPH) capacity and features a 3/4" hose barb discharge.
• How does the automatic sensing system work on the Rule 800 GPH Bilge Pump? The built-in sensors activate the pump approximately every 2.5 minutes for about 1 second to check for water. If water is present, the pump senses resistance and continues running until the water is removed. Power consumption remains minimal while the pump is in checking mode.
• Does the Rule Automatic 800 GPH Bilge Pump require a float switch? No. The Rule Automatic 800 GPH Bilge Pump 20SA uses built-in sensors for automatic operation, so a separate float switch is not required. The product specifications also list compatibility with Rule panel switches 41, 43, and 45.
• What features help protect and maintain the Rule 800 GPH Bilge Pump? The pump features a thermal cut-off, stainless steel shaft, rust and corrosion protection, ignition protection, and a design specified to prevent burn-out when running dry. Its snap-lock strainer base makes cleaning easier, while the threaded discharge simplifies installation and maintenance.
• How does the Rule 800 GPH Bilge Pump help reduce water and air locking? The pump uses backflow prevention to reduce the amount of water remaining in the bilge, which helps reduce odor and keep the bilge cleaner. Hidden air vents within the pump body help prevent air locking in challenging plumbing situations and assist with the check valve.
• What are the electrical and dimensional specifications of the Rule Automatic 800 GPH Bilge Pump? The Rule 800 GPH Bilge Pump operates at 12 DC and draws 3.4 amps at 12 V or 4.3 amps at 13.6 V. It requires a 7.5 amp fuse and has a 3/4" hose barb. The pump measures 4.7" high, 2.9" wide, and 2.5" deep.
