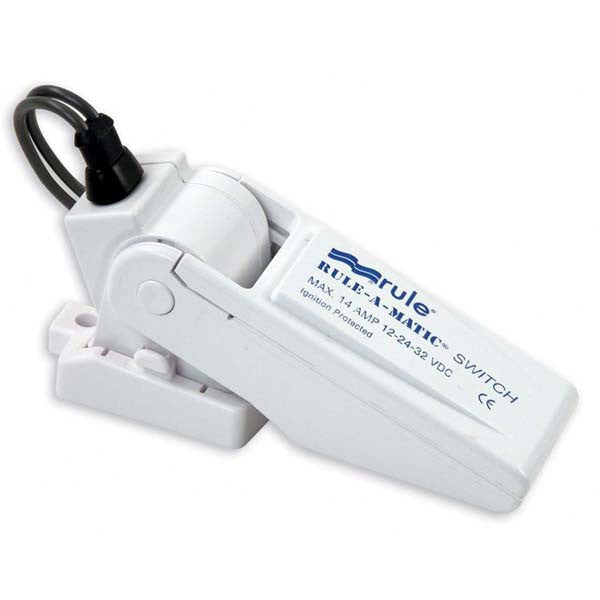

Rule-A-Matic Float Switch

Rule-A-Matic Bilge Pump Float Switch 35A The Rule-A-Matic Bilge Pump Float Switch is designed for automatic on/off bilge pump control. Rule-A-Matic Plus bilge switches have 14 gauge highly abrasive resistant, marine-grade blocked wire and exclusive moisture-tight seals. All Rule float switches are mercury-free and are tested to over one million cycles. It is recommended that the Rule-A-Matic is installed on a flat surface in the bilge compartment for maximum performance. The Rule-A-Matic Float Switch will activate the bilge pump when the water level reaches 2", and will turn the pump off when the water level falls to 3/4". This float switch is suitable for use with any submersible bilge pump drawing up to 14 Amps. Features: Marine-grade blocked wire Exclusive moisture-tight seals Switch design prevents rapid on/off cycling. Mercury free 2 Year warranty Specifications: Volts: 12/24 DC Amp draw: 14 amp (12V), 7 amp (24V) Dimensions: 4-1/2" L x 1-1/2" W x 2" H Click here for Rule Rule-A-Matic Plus Bilge Pump Float Switch Instruction ManualFrequently Asked Questions

• What does the Rule-A-Matic Bilge Pump Float Switch do? The Rule-A-Matic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It helps manage bilge water without requiring constant manual operation.
• At what water levels does the Rule-A-Matic switch activate and deactivate? This float switch activates the bilge pump when water reaches 2" and turns the pump off when the water level falls to 3/4".
• What types of bilge pumps can this float switch be used with? This float switch is suitable for use with submersible bilge pumps drawing up to 14 amps.
• What features help make this float switch durable and reliable? The Rule-A-Matic features marine-grade blocked wire, exclusive moisture-tight seals, and a switch design that helps prevent rapid on/off cycling. It is also mercury-free and tested to over one million cycles.
• What voltage systems does the Rule-A-Matic float switch support? The Rule-A-Matic Bilge Pump Float Switch supports 12V and 24V DC systems. It is rated for 14 amps at 12V and 7 amps at 24V. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What does the Rule-A-Matic Bilge Pump Float Switch do?", "acceptedAnswer": { "@type": "Answer", "text": "The Rule-A-Matic Bilge Pump Float Switch is designed to automatically turn a bilge pump on and off based on water level. It helps manage bilge water without requiring constant manual operation." } }, { "@type": "Question", "name": "At what water levels does the Rule-A-Matic switch activate and deactivate?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch activates the bilge pump when water reaches 2\" and turns the pump off when the water level falls to 3/4\"." } }, { "@type": "Question", "name": "What types of bilge pumps can this float switch be used with?", "acceptedAnswer": { "@type": "Answer", "text": "This float switch is suitable for use with submersible bilge pumps drawing up to 14 amps." } }, { "@type": "Question", "name": "What features help make this float switch durable and reliable?", "acceptedAnswer": { "@type": "Answer", "text": "The Rule-A-Matic features marine-grade blocked wire, exclusive moisture-tight seals, and a switch design that helps prevent rapid on/off cycling. It is also mercury-free and tested to over one million cycles." } }, { "@type": "Question", "name": "What voltage systems does the Rule-A-Matic float switch support?", "acceptedAnswer": { "@type": "Answer", "text": "The Rule-A-Matic Bilge Pump Float Switch supports 12V and 24V DC systems. It is rated for 14 amps at 12V and 7 amps at 24V." } } ] }
