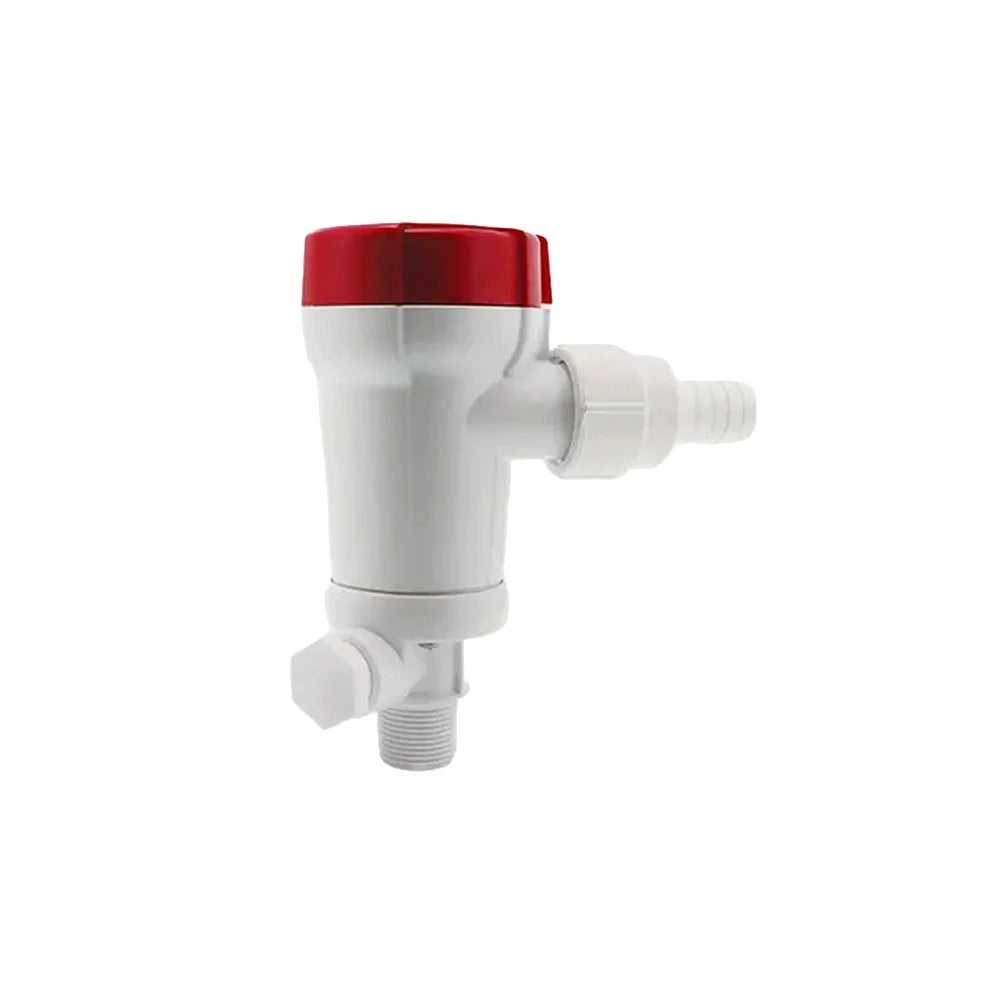

Rule 800GPH Livewell Straight Seacock 12v

Rule 603FC 800 GPH Livewell Pump with Straight Seacock Inlet - 12V DC

Rule 603FC Livewell Pump is an 800 GPH high-performance livewell pump designed to provide efficient water circulation for maintaining healthy bait and catch. Featuring a straight seacock inlet design, this pump is engineered for dependable operation in demanding marine environments and includes advanced anti-airlock protection for consistent water flow.

Built for convenience and versatility, the Rule 603FC features a one-hand “twist & click” motor cartridge removal system for quick servicing in tight installation spaces. Its high-efficiency motor and impeller design help optimize bait health, while the secondary inlet port supports washdown pump connections for added functionality. Designed to withstand the pressures associated with high-speed water intake scoops, the Rule 603FC is ideal for modern fishing boats and high-performance vessels.

Features:

High-efficiency pump design for optimal bait health

Advanced anti-airlock protection

One-hand “twist & click” motor cartridge removal and replacement

Secondary inlet port for washdown pump connection

Designed to withstand high inlet pressure from high-speed water intake scoops

Compatible with multiple installation configurations

Specifications:

Model Number: 603FC

Open Flow Rate: 800 GPH

Inlet Style: Straight Seacock

Inlet Size: 3/4” NPT Thread

Discharge Size: 3/4” Hose Barb

Voltage: 12 VDC

Amp Draw @ 12V DC: 4.1 Amp

Recommended Fuse Size: 7.5 Amp

Replacement Motor Cartridge: 66DR
