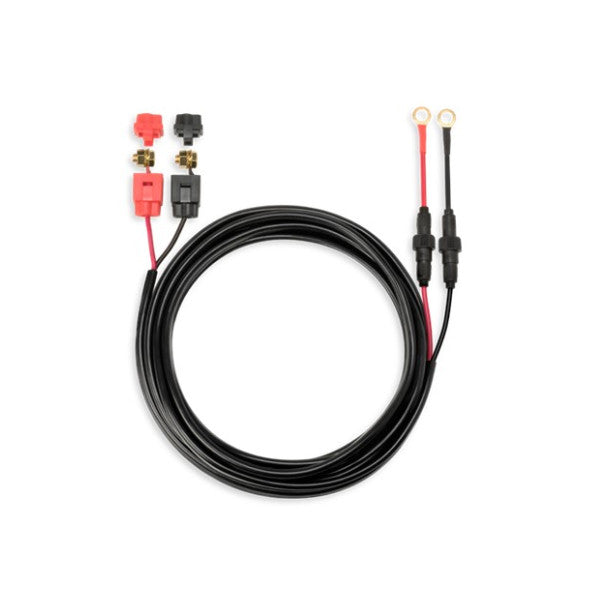

ProMariner 15' Universal DC Cable Extender

ProMariner Universal DC Cable Extender

The ProMariner DC Cable Extender features a universal design for all marine chargers with ring terminal cables. Use these cable extenders with all on-board marine battery chargers when standard battery charger cables do not reach your bow, center mount, or stern battery compartment locations. These cable extenders are color coded for quick and easy installation and don't require any cutting, stripping, or splicing. Features corrosion-resistant tinned 12 AWG copper wire and gold plated hardware.

Features:

Rated up to 30 amps

Waterproof dual in-line fuses

No cutting, stripping, or splicing required

Slide & snap fully insulated connection covers

Corrosion-resistant tinned 12 AWG copper wire

Dual inline waterproof fuses for maximum wire protection

Available in 5' or 15' cable lengths

How to Install ProMariner Universal DC Cable Extender

Align charger red and black wires and assemble hardware as shown above.

Tighten all hardware to approximately 12 ft. lbs. using two 1/2" wrenches.

Slide and snap connection cover.
