Powerwinch Trailer Winch 912 11 500 Lb

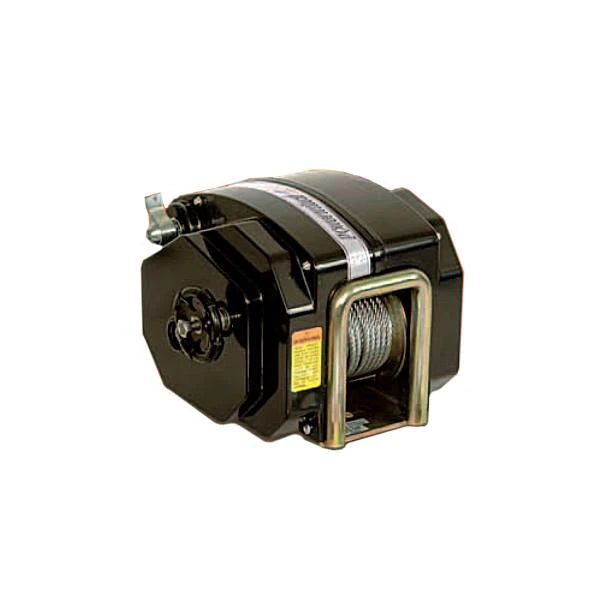

Powerwinch 912 Marine Trailer Winch - 11,500 lbs

Powerwinch 912 Marine Trailer Winches feature smooth power-in/free-wheel out action. Using a pulley or block at the bow eye can double your pulling power.

Key Features:

Remote power-in/freewheel-out operation

60 amp standard wiring harness

Pulley block for double line applications

One year limited warranty

Max. boat weight of 11,500 lbs

4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications:

Max. Boat Weight: 11500

Line Speed: 8 FPM

Vertical Lift Capacity: 4000 lbs

Double Line Capacity: 7500 lbs

Gear Ratio: 450:1

Power Source: 12V

Circuit Breaker: 60 amp

Unit Weight: 35 lbs

Depth: 10"

Width: 10"

Height: 8"

Cable Length and Diameter: 40' x 7/32"

Click here to download Powerwinch 912 Marine Trailer Winch Manual & Parts list

Frequently Asked Questions

• What is the Powerwinch 912 Marine Trailer Winch used for? The Powerwinch 912 Marine Trailer Winch is a 12V powered winch designed for marine trailer applications with a maximum boat weight of 11,500 pounds. It provides remote power-in and free-wheel-out operation, with a pulley block included for double-line applications.
• What is the pulling capacity of the Powerwinch 912 Marine Trailer Winch? The Powerwinch 912 has a 4,000-pound vertical lift capacity when used with a single line and a 7,500-pound capacity for double-line applications. The winch is not designed or intended to be used as a hoist.
• What is the maximum boat weight for the Powerwinch 912? The Powerwinch 912 Marine Trailer Winch has a maximum boat weight specification of 11,500 pounds. Verify that your boat and trailer application are appropriate for the winch's specified capacity before use.
• Does the Powerwinch 912 include a pulley block for double-line applications? Yes. The Powerwinch 912 includes a pulley block for double-line applications. Using a pulley or block at the bow eye can provide the specified 7,500-pound double-line capacity compared with the 4,000-pound single-line vertical lift capacity.
• What are the line and power specifications for the Powerwinch 912? The Powerwinch 912 uses 40 feet of 7/32-inch cable and has a line speed of 8 feet per minute. It operates from a 12V power source and includes a 60-amp standard wiring harness and 60-amp circuit breaker.
• What are the dimensions and weight of the Powerwinch 912 Marine Trailer Winch? The Powerwinch 912 weighs 35 pounds and measures 10 inches deep, 10 inches wide, and 8 inches high. It has a 450:1 gear ratio and is designed for remote power-in and free-wheel-out operation.
