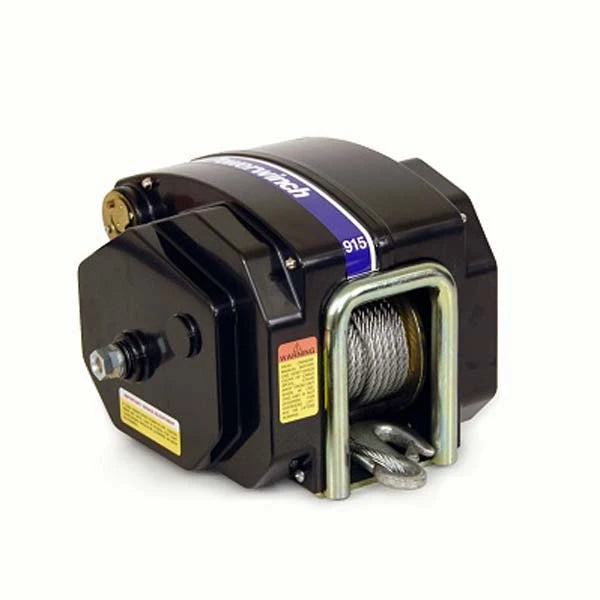

Powerwinch Trailer Winch-915 9500 Lb

Powerwinch 12V Marine Boat Trailer - Model 915

Model 915 12V power-in/power-out allows you to control your boat as it is lowered into the water. The 915 comes complete with a 10' remote control cord and switch. It also features a pulley block for double-line applications, emergency hand crank and a 60 amp standard wiring harness.

Why power-in/freewheel-out . . . or power-out? With the power-in/freewheel-out system, the electric motor pulls the boat onto the trailer yet has a clutch release that allows gravity to float the boat into the water with ease.

Click here to download Powerwinch 915 Marine Boat Trailer Owners Manual

Click here to download Powerwinch 915 Marine Boat Trailer Replacement parts and wiring diagramProduct Features:

Max. boat weight: 9500 lbs

Vertical lift capacity of 3200 lbs, double line capacity of 7500 lbs. (not to be used as a hoist)

Power-in/power-out control

Line speed 10 FPM

12 volt operating power

10' remote control cord and switch

40' x 7/32" cable

Manual hand crank

Pulley block for double-line applications

60 amp standard wiring harness

Product Specifications

Max. Boat Weight - 9500 lbs

Line Speed - 10 FPM

Vertical Lift Capacity - 3200 lbs

Remote Control - No

Light - No

Double Line Capacity - 5900 lbs

Gear Ratio - 450:1

Power Source - 12V

Circuit Breaker - 60 amp

Unit Weight - 40 lbs

Depth - 10"

Width - 10"

Height - 8"

Cable Length and Diameter - 40' x 7/32"
