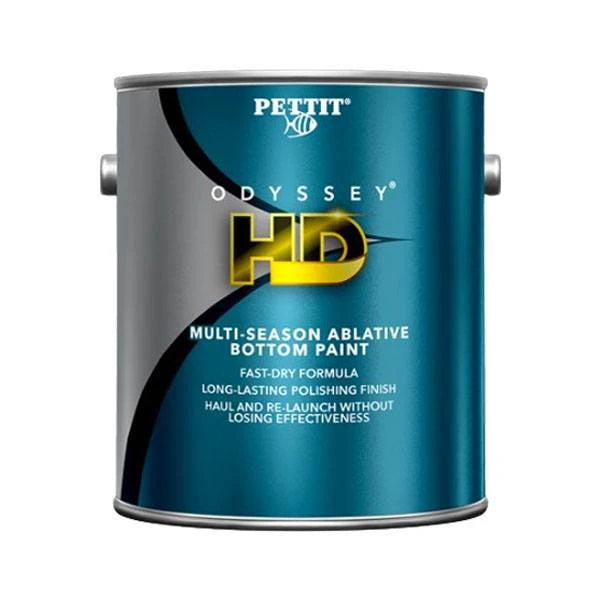

Pettit Paint Odyssey HD Ablative Antifouling Bottom Paint

Pettit Odyssey HD Ablative Antifouling Bottom Paint

Pettit Odyssey HD Bottom Paint is a multi-season antifouling paint that combines controlled polishing ablative technology with a high copper content. Odyssey HD provides a paint film strong enough to handle tough fouling waters from coast to coast. This bottom paint is 50 state VOC-compliant and will not build up over time, leaving running surfaces smooth and clean. Odyssey HD's copolymer resins withstand hauling and relaunching without losing effectiveness for both power and sailboats. Additionally, Odyssey is fast-drying and provides multi-season protection.

Pettit Odyssey HD provides excellent antifouling protection and is backed by the industry's strongest limited warranty. The Hull Defense 18 Month Limited Warranty offers peace of mind to every boater. Odyssey HD offers the most dependable and trusted antifouling paint in the industry.

Features:

Multi-season protection

Fast dry, VOC-compliant for boatyards

High-copper ablative protection in all waters

Smooth polishing finish prevents buildup and sanding

Compatible over most bottom paints

Covered by HD (Hull Defense) 18 month limited warranty

Specifications:

Pack Size: 1 US Gallon, 1 US Quart

Type: Copper-based ablative

Recommended Usage: All fouling waters

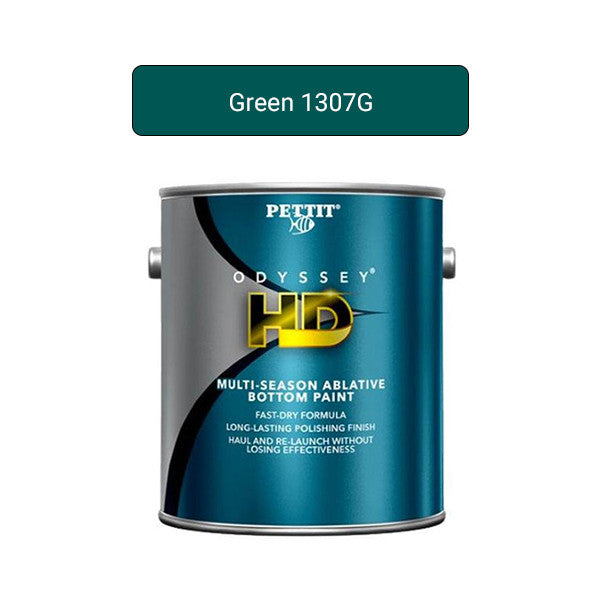

Colors Available: 1207 Blue, 1807 Black, 1227 Dark Blue, 1307 Green, 1607 Red

Drying Time: To overcoat 3hrs; To launch; 10hrs. @ 70°F

Number of Coats Recommended: 2

Coverage: 475 ft2/gal

VOC: 330 grams/liter

Biocide: Cuprous Oxide 45.7%

Associated Products:

• Pettit Protect Epoxy Primer - Primer for bare fiberglass applications
• Pettit 120 Thinner - For surface prep
• How Much Pettit Odyssey HD Do I Need for My Boat? Refer to the chart below to calculate how much Odyssey paint you will need for your boat.

Calculate the square footage of the hull to be painted - multiply the length of the hull by the beam then multiply that total by .85

Divide that number (your square foot total) by the amount of coverage Odyssey HD provides. (475 square foot per gallon). This will give you a one-coat total.

Example: If your boat has a length of 28', and a beam of 8.5', you will multiply 28 x 8.5 x .85 to get your total square footage. The total square footage for this boat is 202.3 square feet. A gallon of Odyssey HD has a coverage of 475 square feet per gallon for one coat, so one gallon will be enough for two coats.

How to Apply Pettit Odyssey HD Bottom Paint

Odyssey HD is easily applied by brush, roller, or spray. When rolling, use only a high-quality roller cover. Prior to application, it is necessary to thoroughly mix the paint before using. Odyssey HD contains cuprous oxide, so there is a tendency for settling to occur. Shake the can of paint on a mechanical paint shaker, a wooden paddle, or an electric drill mixer. Before using, check the sides and bottom of can to ensure all the pigment has been mixed in. Adhere to all application instructions to obtain optimum performance. If spraying, make sure not to thin more than 10% or inadequate paint film thickness will occur.

Application Methods: Brush, roller, airless or conventional spray

Number of Coats: 2

Dry Film Thickness: 1.6 mils (3.2 wet mils)

Coverage: 475 sq. ft/gal.

Application Temp: 50°F Min. / 90°F Max.

Thinner: 120 Brushing Thinner or 121 Spraying Thinner

DRY TIMES:

Temp

To Touch

To Recoat

To Launch

90°F

1/4 HR

1-1/2 HR

6 HR

70°F

1/2 HR

3 HR

10 HR

50°F

1 HR

6 HR

16 HR

Application Systems

Previously Painted Surfaces

To paint old hard and ablative bottom paints, thoroughly wipe down the surface with 120 Brushing Thinner.

Sand painted surface with 80 grit sandpaper.

For old tin or copper copolymers or Teflon-based bottom p…
