Moeller Marine Reed Switch Fuel Sending Unit

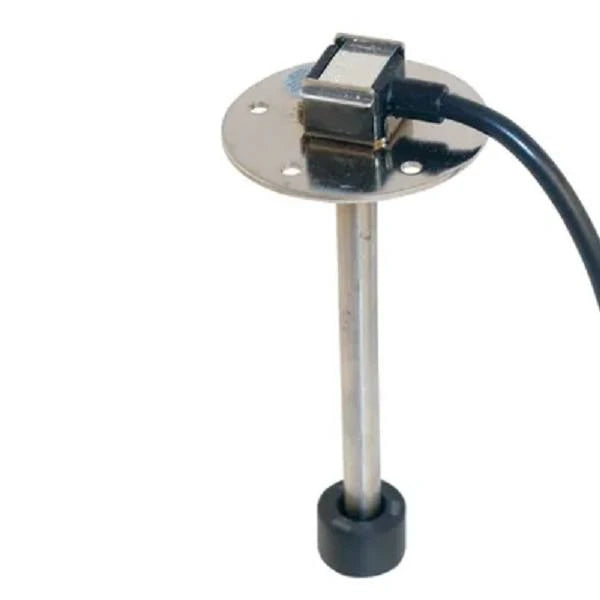

Moeller Reed Switch Fuel Sending Unit

Collect fuel level information more consistently than swingarm senders by taking the measurement from the float-which is still a moving part.  However the fluctuation is much less because the range of motion is much less.

316 Type, Stainless Steel construction provides efficient performance

A Direct Original Equipment Manufactured sender replacement by WEMA USA

Sender length is 1" shorter than the tank depth.

Calibrated to 32-240Ohm's, an industry standard.

Complete with 5-hole gasket and screws.

Compatible with Dash Mounted Gauge (33-240 Ohm's)

Available in the following tank depths:

6" tank depth - Moeller part# 035773-10

9" tank depth - Moeller part # 035761-10

11" tank depth - Moeller part # 035762-10

13" tank depth - Moeller part # 035764-10

15" tank depth - Moeller part # 035765-10

18-1/2" tank depth - Moeller part # 035767-10

Sender length is 1" shorter than tank depth.

Moeller Reed Switch Fuel Sending Unit FAQs

• What does the Moeller Reed Switch Fuel Sending Unit do? The Moeller Reed Switch Fuel Sending Unit collects fuel level information from the float and sends the reading to a compatible dash-mounted fuel gauge.
• How is a reed switch fuel sending unit different from a swingarm sender? A reed switch fuel sending unit can provide more consistent fuel level readings than a swingarm sender because the float has a smaller range of motion.
• What ohm range is the Moeller Reed Switch Fuel Sending Unit calibrated to? The Moeller Reed Switch Fuel Sending Unit is calibrated to the industry standard 32-240 ohm range and is compatible with 33-240 ohm dash-mounted gauges.
• What is included with the Moeller Reed Switch Fuel Sending Unit? The Moeller Reed Switch Fuel Sending Unit comes complete with a 5-hole gasket and screws.
• How do I choose the correct sender length? Choose the sender based on tank depth. The sender length is 1" shorter than the tank depth.
• What tank depths are available for the Moeller Reed Switch Fuel Sending Unit? Available tank depths include 6", 9", 11", 13", 15", and 18-1/2".
