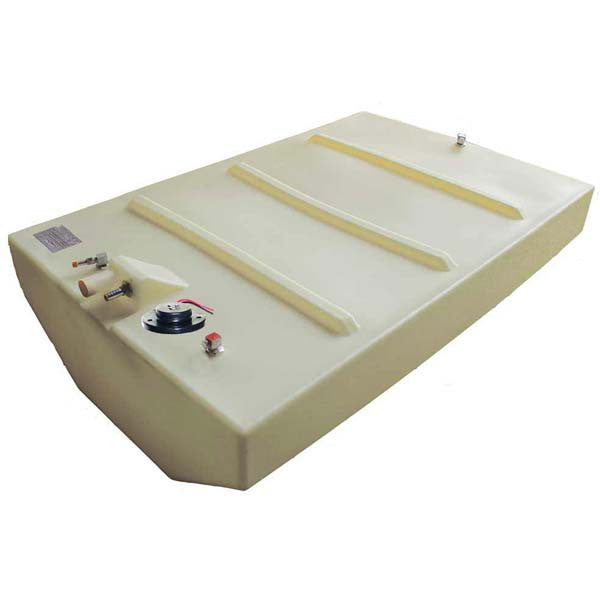

Moeller Marine 85 Gallon Fuel Tank(Fta000649)

Moeller 85 Gallon Fuel Tank

Unlike aluminum tanks, this comprehensive line of cross-linked polyethylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.

Features:

Moeller is your single source for the ultimate in below-deck technology.

Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience

UV rating of 8 - Temperature rating of -40°F to 176°F

1 1/2" Diameter Fill Spout

Add 2-1/8" (54mm) to tank height dimension to accommodate fill height.

Helpful Hint:

• You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!
• Specifications:

Capacity

85 Gal / 322 L

Length

53.63"

Width

34.75"

Height

16.50"

Bracket Tie Down

Custom

# Fuel Pickups

2

This is a special order item and cannot be returned.

Frequently Asked Questions

• What is the Moeller 85 Gallon Fuel Tank designed for? The Moeller 85 Gallon Fuel Tank is a cross-linked polyethylene permanent fuel tank designed for below-deck applications. It features ethanol and biodiesel compliance, corrosion and pit resistance, and molded fill, withdrawal, and vent fittings integrated into the tank shell.
• What are the dimensions and capacity of the Moeller 85 Gallon Fuel Tank? The Moeller 85 Gallon Fuel Tank has an 85-gallon (322 L) capacity and measures 53.63 inches long, 34.75 inches wide, and 16.50 inches high. Add 2-1/8 inches (54 mm) to the tank height dimension to accommodate the fill height.
• What type of withdrawal fitting does the Moeller 85 Gallon Fuel Tank have? The tank features a 3/8-inch machined aluminum withdrawal fitting with a 360-degree swivel poplock for hook-up convenience. It also has a 1-1/2-inch diameter fill spout and molded withdrawal and vent fittings.
• What temperature range is the Moeller 85 Gallon Fuel Tank rated for? The Moeller 85 Gallon Fuel Tank has a temperature rating of -40°F to 176°F and a UV rating of 8.
• What type of bracket tie down does the Moeller 85 Gallon Fuel Tank use? The Moeller 85 Gallon Fuel Tank is specified with a custom bracket tie down. Verify the mounting requirements and available installation space before selecting this tank.
• How many fuel pickups does the Moeller 85 Gallon Fuel Tank have? The Moeller 85 Gallon Fuel Tank has two fuel pickups. The tank also includes molded fill neck, withdrawal, and vent fittings integrated directly into the tank shell.
