Moeller Marine Perm Ft 27Gal (Ft2799-1)

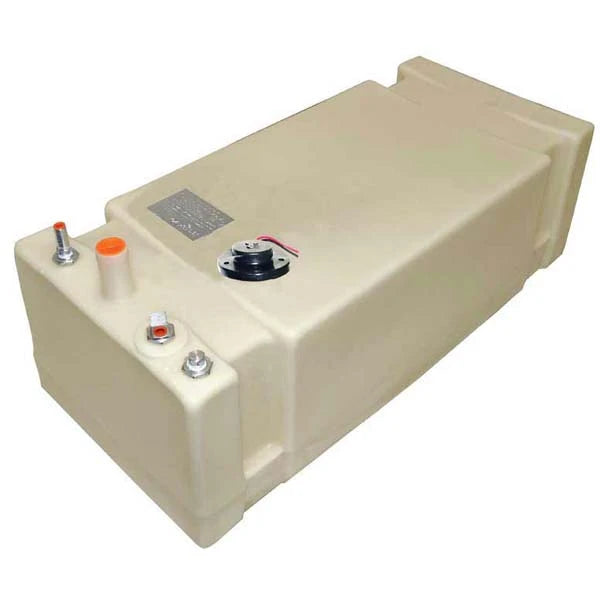

Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank

Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.

Features:

Moeller is your single source for the ultimate in below-deck technology.

Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience

UV rating of 8 - Temperature rating of -40°F to 176°F

1 1/2" Diameter Fill Spout

Add 2-1/8" (54mm) to tank height dimension to accommodate fill height

Helpful Hint: You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!

Specifications:

Capacity

27 Gal / 102 L

Length

36.50"

Width

16"

Height

14.50"

Bracket Tie Down

035710 or 300110

# Fuel Pickups

1

Frequently Asked Questions

• What is the Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank designed for? The Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank is a cross-linked polyethylene permanent fuel tank designed for below-deck applications. It features ethanol and biodiesel compliance, corrosion and pit resistance, and molded fill, withdrawal, and vent fittings integrated into the tank shell.
• What are the dimensions and capacity of the Moeller 27 Gallon Marine Fuel Tank? The Moeller permanent marine fuel tank has a 27-gallon (102 L) capacity and measures 36.50 inches long, 16 inches wide, and 14.50 inches high. Add 2-1/8 inches (54 mm) to the tank height dimension to accommodate the fill height.
• What type of fittings does the Moeller 27 Gallon fuel tank have? The tank features a 1-1/2-inch diameter fill spout and molded withdrawal and vent fittings. The 3/8-inch machined aluminum withdrawal fitting has a 360-degree swivel poplock for hook-up convenience.
• What temperature range is the Moeller 27 Gallon Marine Fuel Tank rated for? The Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank has a temperature rating of -40°F to 176°F and a UV rating of 8.
• Which tie downs are used with the Moeller 27 Gallon fuel tank? The Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank uses either 035710 or 300110 tie downs. Verify the available mounting area and tank dimensions before installation.
• How many fuel pickups does the Moeller 27 Gallon Marine Fuel Tank have? The Moeller 27 Gallon Below Deck Permanent Marine Fuel Tank has one fuel pickup. The tank also includes molded fill neck, withdrawal, and vent fittings integrated into the tank shell.
