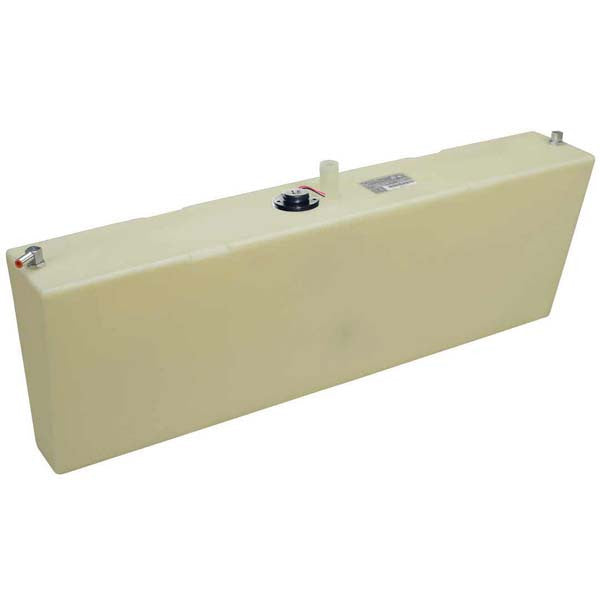

Moeller Marine Perm Ft 24Gal Port Side W/Draw

Moeller 24 Gallon Fuel Tank W/ Port Side Withdraw

Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.

Features:

Moeller is your single source for the ultimate in below-deck technology.

Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience

UV rating of 8 - Temperature rating of -40°F to 176°F

1 1/2" Diameter Fill Spout

Add 2-1/8" (54mm) to tank height dimension to accommodate fill height.

Helpful Hint:

• You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!
• Specifications:

Capacity

24 Gal / 91 L

Length

51"

Width

8.75"

Height

20.63"

Bracket Tie Down

300110

# Fuel Pickups

1
