Moeller Marine Perm Ft 14Gal (Ft1499-1)

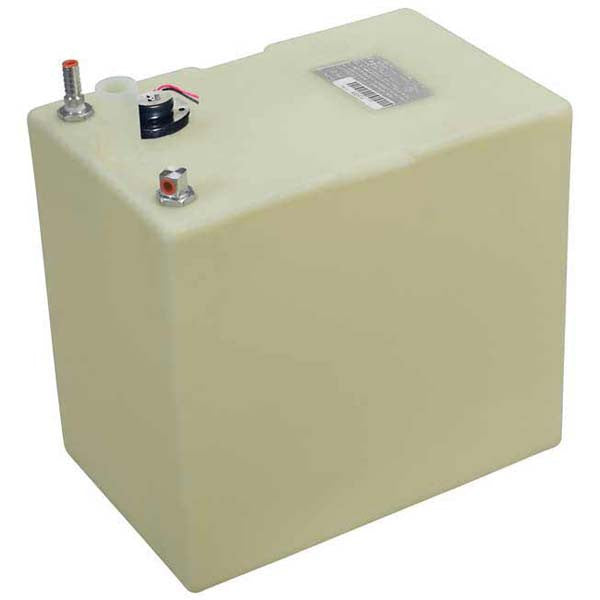

Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank

Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.

Features:

Moeller is your single source for the ultimate in below-deck technology.

Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience

UV rating of 8 - Temperature rating of -40°F to 176°F

1 1/2" Diameter Fill Spout

Add 2-1/8" (54mm) to tank height dimension to accommodate fill height

Helpful Hint: You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!

Specifications:

Capacity

14 Gal / 53 L

Length

18"

Width

11.75"

Height

19"

Bracket Tie Down

300110

# Fuel Pickups

1

Frequently Asked Questions

• What is the capacity of the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank? The Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank has a 14-gallon (53-liter) capacity. It measures 18 inches long, 11.75 inches wide, and 19 inches high.
• What is the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank made from? The tank is constructed from cross-linked polyethylene and is designed with resistance to corrosion and pitting. The product description also states that the tank is ethanol and biodiesel compliant.
• What fittings are included with the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank? The tank has a molded fill neck and withdrawal and vent fittings integrated directly into the tank shell. It also features a machined aluminum 3/8-inch withdrawal fitting with a 360-degree swivel PopLock for connection convenience.
• What is the fill spout size on the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank? The Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank has a 1 1/2-inch diameter fill spout. The product description recommends adding 2 1/8 inches (54 mm) to the tank height dimension to accommodate the fill height.
• What are the temperature and UV ratings of the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank? The tank has a UV rating of 8 and a specified temperature rating from -40°F to 176°F, according to the product specifications.
• How many fuel pickups does the Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank have? The Moeller 14 Gallon Below Deck Permanent Marine Fuel Tank has one fuel pickup. A bracket tie-down is also listed for the tank under part number 300110.
