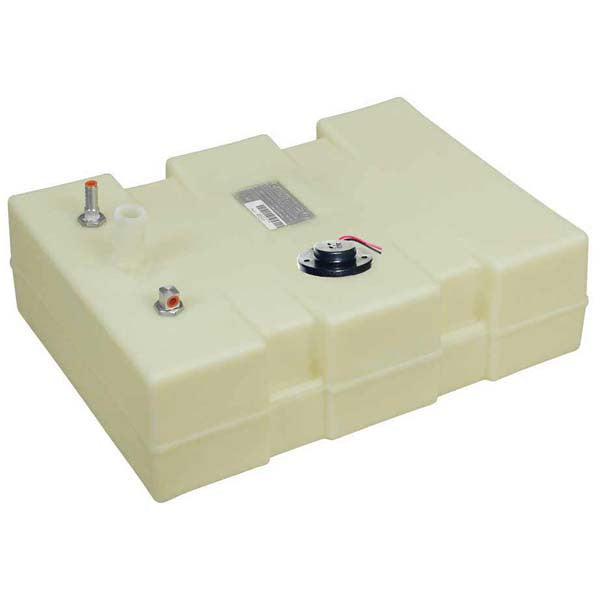

Moeller Marine Perm Ft 12Gal (Ft1295-1)

Moeller 12 Gallon Below Deck Permanent Marine Fuel Tank Flat Unlike aluminum tanks, this comprehensive line of cross-linked polyethylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses. Features: Moeller is your single source for the ultimate in below-deck technology. Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience UV rating of 8 - Temperature rating of -40°F to 176°F 1 1/2" Diameter Fill Spout Add 2-1/8" (54mm) to tank height dimension to accommodate fill height Uses 035710 or 300110 tie downs Helpful Hint: You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank! Specifications:   Capacity   12 Gal / 45 L   Length   24.50"   Width   18.50"   Height   9.75"   Bracket Tie Down   035710 or 300110   # Fuel Pickups   1 Moeller 12 Gallon Below Deck Permanent Marine Fuel Tank FAQs

• What is the capacity of the Moeller 12 Gallon Below Deck Fuel Tank? The Moeller 12 Gallon Below Deck Fuel Tank has a 12 gallon, or 45 liter, capacity.
• What are the dimensions of the Moeller 12 Gallon Below Deck Fuel Tank? The Moeller 12 Gallon Below Deck Fuel Tank measures 24.50" long, 18.50" wide, and 9.75" high. Add 2-1/8" to the tank height to accommodate the fill height.
• What material is this Moeller fuel tank made from? This Moeller fuel tank is made from cross-linked polyethylene for corrosion and pit resistance.
• What size is the fill spout on this Moeller fuel tank? The Moeller 12 Gallon Below Deck Fuel Tank has a 1-1/2" diameter fill spout.
• Which tie downs does this Moeller fuel tank use? This Moeller fuel tank uses 035710 or 300110 tie downs.
• How many fuel pickups does the Moeller 12 Gallon Below Deck Fuel Tank have? The Moeller 12 Gallon Below Deck Fuel Tank has one fuel pickup. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the capacity of the Moeller 12 Gallon Below Deck Fuel Tank?", "acceptedAnswer": { "@type": "Answer", "text": "The Moeller 12 Gallon Below Deck Fuel Tank has a 12 gallon, or 45 liter, capacity." } }, { "@type": "Question", "name": "What are the dimensions of the Moeller 12 Gallon Below Deck Fuel Tank?", "acceptedAnswer": { "@type": "Answer", "text": "The Moeller 12 Gallon Below Deck Fuel Tank measures 24.50\" long, 18.50\" wide, and 9.75\" high. Add 2-1/8\" to the tank height to accommodate the fill height." } }, { "@type": "Question", "name": "What material is this Moeller fuel tank made from?", "acceptedAnswer": { "@type": "Answer", "text": "This Moeller fuel tank is made from cross-linked polyethylene for corrosion and pit resistance." } }, { "@type": "Question", "name": "What size is the fill spout on this Moeller fuel tank?", "acceptedAnswer": { "@type": "Answer", "text": "The Moeller 12 Gallon Below Deck Fuel Tank has a 1-1/2\" diameter fill spout." } }, { "@type": "Question", "name": "Which tie downs does this Moeller fuel tank use?", "acceptedAnswer": { "@type": "Answer", "text": "This Moeller fuel tank uses 035710 or 300110 tie downs." } }, { "@type": "Question", "name": "How many fuel pickups does the Moeller 12 Gallon Below Deck Fuel Tank have?", "acceptedAnswer": { "@type": "Answer", "text": "The Moeller 12 Gallon Below Deck Fuel Tank has one fuel pickup." } } ] }
