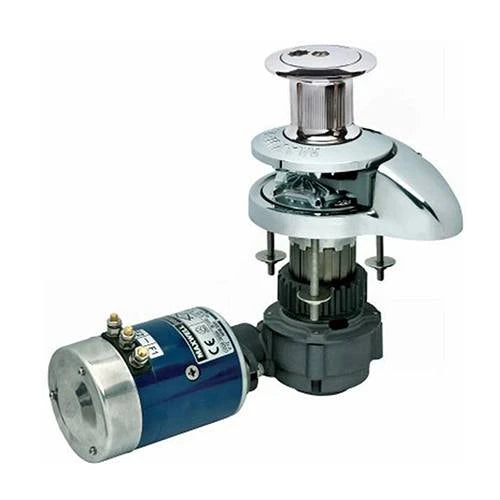

Maxwell Marine RC8 Windlass w/ Capstan - 5/16" & 5/8" Rode - Up to 33'

The all new stainless steel RC8 fully automatic rope/chain windlass is designed to effortlessly retrieve and deploy 69/16" chain spliced to 5/8" three strand or 8-brait (plait) rope. The ingeniously designed rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences within the specified chain size diameters.

Simple two piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.

The heavy duty stainless steel pressure arm is designed to effectively help grasp the rope/chain splice, giving the RC8 an unparalleled level of performance. In combination with a heavy duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm always exerts maximum control pressure.

Wave Design™ Chainwheel:

• The new and revolutionary patented Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the RC8 Series. This patented rope. Chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward, ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.
• Features:

The RC8 features Maxwell’s revolutionary, and patented, new Wave Design™ chainwheel.

The RC8 works just as effectively with all-chain rodes.

Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.

Full disassembly capability of the top works utilizing only the handle provided and an Allen key.

Manual override and Free Fall, using the emergency crank/clutch handle provided.

Sealed oil bath and marine-grade hard anodized alloy gearbox provides maximum output via a precision worm and worm wheel.

Specifications:

Maximum Pull  1320lbs.

Static Hold  2640 lbs.

Chain Short Link  5/16"" (8mm)

Rope Size (3 strand or 8 plait)  9/16" - 5/8"  (14mm-16mm)

Chain Speed  105 ft/min

Rope Speed  92 ft/min

Power Supply  12V or 24V

Motor Power  1000W

Frequently Asked Questions

• What is the Maxwell Marine RC8 Windlass w/ Capstan designed for? The Maxwell Marine RC8 Windlass w/ Capstan is a fully automatic rope/chain windlass designed for boats up to 33 feet. It is built to retrieve and deploy a rope/chain spliced rode and features a stainless steel pressure arm, Wave Design™ chainwheel, and marine-grade hard anodized alloy gearbox.
• What rope and chain sizes are compatible with the Maxwell Marine RC8 Windlass? The RC8 is specified for 5/16-inch (8mm) short-link chain and 9/16- to 5/8-inch (14-16mm) three-strand or 8-plait rope. Its Wave Design™ chainwheel is designed to accommodate a range of chain pitch differences within the specified chain size.
• Can the Maxwell Marine RC8 Windlass be used with an all-chain rode? Yes. The product description states that the RC8 works effectively with all-chain rodes as well as rope/chain spliced rodes. Its large through-deck hawse pipe throat is designed to provide easy entry of the rode into and out of the anchor locker.
• Does the Maxwell Marine RC8 have manual override and free-fall operation? Yes. The RC8 includes manual override and free-fall capability using the supplied emergency crank/clutch handle. The topworks can also be fully disassembled using the provided handle and an Allen key.
• What are the pulling and operating specifications of the Maxwell Marine RC8 Windlass? The RC8 has a maximum pull of 1,320 lb and a static hold of 2,640 lb. Its cha…
