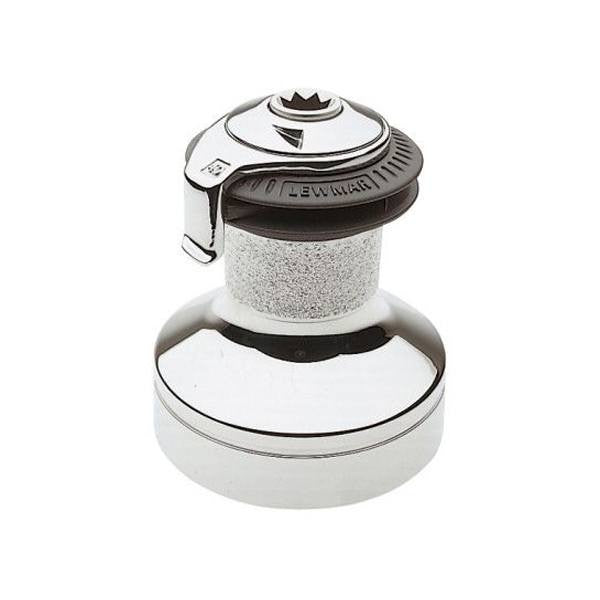

Lewmar Marine Ocean Series 40 Cst Winch

Lewmar 40CST Two-Speed Self-Tailing Winch

This Lewmar 40CST Two-Speed Self-Tailing Winch features high tensile bronze gears, on multi-speed winches that deliver smooth power with minimal friction. The all-bronze, one-piece, center stem/base combination provides exceptional strength while simplifying servicing. The self-tailer combines the gentle wave grip feature with self adjusting springs. With a sleek, minimum-friction feeder arm, this winch provides absolute snag-free operation.

Features:

Stainless Steel Main Gear Shafts

Convertible To Electric From Size 40 and Up

High Tensile Bronze Gears, On Multi-Speed Winches, Deliver Smooth Power With Minimal Friction

Pawls Are Captive and Will Not Pop Out When The Drum Is Removed For Servicing

Easy Servicing - No Tools Required

All Bronze, One-Piece, Center Stem/Base Combination Provides Exceptional Strength While Simplifying Servicing

No Need To Remove The Winch In Order To Take It Apart

Can Be Hand Stripped For Servicing With No Tools Required

Specifications:

Weight: 14.3 lb

Power Ratio 1st/2nd: 13.2:1/40.2:1

Gear Ratio 1st/2nd: 1.9:1/5.8:1

Drum Diameter: 2-15/16 in

Base Diameter: 5-13/16 in

Height: 6-13/16 in

Line Entry: 3-1/8 in

Line Size: 5/16 - 1/2 in
