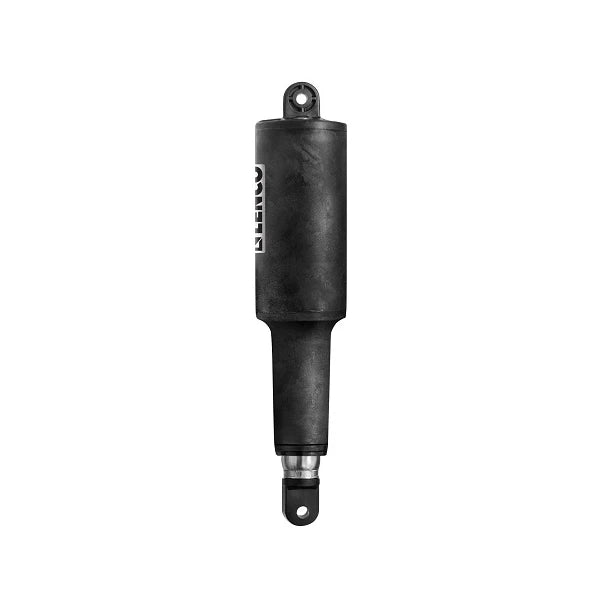

Lenco Trim Tabs Std Actuator 2 1/4"-5/16"

Lenco 15054-001 101 Standard Replacement Trim Tab Actuator

The Lenco 101 Standard Replacement Trim Tab Actuator delivers professional-grade performance for your boat's trim system. This fully submersible unit features a high-torque motor that generates 750 lbs of push force - twice that of hydraulic actuators. Built with a corrosion-resistant design, it includes a stainless steel ram, UV-resistant Nylon 66 housing, and waterproof Deutsch connectors for reliable operation in both fresh and saltwater environments. The self-locking stainless steel ball screw with 12 bearings ensures precise tab positioning without drift. Installation is straightforward with included mounting hardware and plug-and-play connections. With a 2-¼" stroke length and 12-â…›" overall length, this maintenance-free 12V actuator provides smooth, dependable trim control backed by a 5-year limited warranty. Its durable construction and powerful performance make it an ideal replacement for standard Lenco trim tab systems.

Lenco Part#: 15054-001

OEM Part#: 20400-001

Specifications

Stroke Length: 2-¼”

Overall Length (Tip-to-Tip): 12-â…›”

Voltage: 12V

Wire Length: 6’

Top Cap Hole: 5/16”

End Hole: 5/16”

Push Load: 750 lbs (340.18 kg)

Material: High-impact Nylon 66 housing with stainless steel components

Features

Fully Submersible and Maintenance-Free: Lenco actuators are designed to operate underwater without maintenance, ensuring hassle-free performance in demanding marine environments. It is sealed for life, eliminating the need for lubrication or upkeep.

High-Torque Motor for Maximum Performance: This actuator is powered by a rugged high-torque motor that delivers an impressive 750 lbs of push force, making it twice as strong as hydraulic actuators. It ensures quick, precise, and reliable trim tab adjustments for enhanced boat stability.

Self-Locking Stainless Steel Ball Screw: The self-locking ball screw mechanism prevents tab drift and ensures precise positioning without the need for limit switches or clutches. With 12 ball bearings, the Lenco trim tab actuator delivers smooth and accurate movement with minimal power consumption.

Corrosion-Resistant Construction: Built with marine-grade materials, including a stainless steel ram, corrosion-proof Vandar top cap, and UV-resistant Nylon 66 housing, the Lenco 101 actuator is engineered for long-lasting performance in saltwater and freshwater environments.

Waterproof Plug-and-Play Deutsch Connectors: The Deutsch connectors provide a watertight seal, preventing water intrusion and ensuring quick, secure, and easy installation.

High-Strength, Precision-Molded Gears: The powdered metal, high-alloy gears are designed for exceptional wear resistance, accuracy, and durability. With this, you can expect your Lenco marine actuator to deliver consistent performance over years of use.

Lenco 101 Standard Replacement Actuator FAQs

• Will the Lenco 15054-001 actuator fit my boat? The Lenco 15054-001 may be the correct replacement if your existing trim tab system uses a 12V Lenco 101 Standard actuator with a 2.25-inch stroke, 5/16-inch top-cap hole, and 5/16-inch end hole. It replaces Lenco OEM part number 20400-001. Confirm the actuator type, voltage, stroke length, mounting-hole configuration, and existing part number before ordering.
• What OEM part number does the Lenco 15054-001 replace? The Lenco 15054-001 101 Standard actuator replaces OEM part number 20400-001.
• What is the stroke length of the Lenco 15054-001 actuator? This Lenco 101 Standard replacement actuator has a 2.25-inch stroke and an overall tip-to-tip length of 12.125 inches.
• What mounting-hole sizes does this actuator use? The Lenco 15054-001 uses a 5/16-inch top-cap mounting hole and a 5/16-inch end mounting hole. Both mounting points should match the existing actuator installation.
• Is the Lenco 15054-001 a 12V or 24V actuator? The Lenco …
