Kuuma Water Heater 6 Gal 120V Front Heat Exchange Front Back Mount

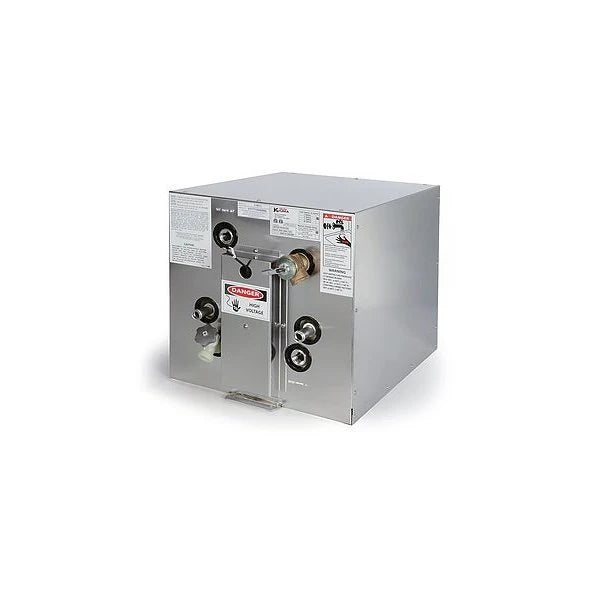

Kuuma 120V Front Mount, Front Heat Exchange 6 Gallon Water Heater

Ideal for galley use, this Kuuma 6-gallon marine water heater supplies enough hot water to wash clothing or dishes during a voyage or weekend trip. Thanks to a 1500W heating element and large diameter, dual-loop heat exchanger this model additionally offers two water-heating options: either heated dockside using 120V AC power hookup or using residual engine heat when out on the open water.

Kuuma water heaters are durable and feature a marine-grade aluminum case and cladded aluminum tank. For safer operation a high-temperature limiter with automatic reset are included. For easier installation and maintenance, all plumbing and electrical connections are “front” located. Note: A magnesium anode is recommended to extend tank life.

Features:

AC power water heater with heat exchanger for use while docked or under power.

Has corrosion-resistant marine-grade aluminum case and cladded aluminum tank.

1500W heating element offers quick recovery using shore power or generator-sourced power.

Front-mounted plumbing connections for easier installation and service.

Includes high-temperature limiter with automatic reset.

Ignition-protected for use on gasoline powered boats

Specifications:

Capacity: 6 Gallons

Part Number: 11811

Dimensions: 13.75 in W x 13.625 in H x 19.75 in D

Mount Arrangement: Front-Rear

Electrical Input: 120V - 50Hz/1500W

Wiring Configuration: L1 & N

Heat Exchanger Position/Material: Front/AL

T&P Valve Type: 100psi & 210º F, CSA

Frequently Asked Questions

• What is the Kuuma 120V Front Mount, Front Heat Exchange 6 Gallon Water Heater used for? The Kuuma 120V Front Mount, Front Heat Exchange 6 Gallon Water Heater is designed for marine use and is ideal for galley applications. It can heat water using 120V AC power while docked or residual engine heat while underway.
• How does the Kuuma 6 Gallon Water Heater heat water? The Kuuma 6 Gallon Water Heater provides two water-heating options. Its 1500W heating element uses 120V AC power from a shore power or generator source, while the front-mounted heat exchanger can use residual engine heat when the boat is underway.
• What are the capacity and dimensions of the Kuuma 6 Gallon Water Heater? The Kuuma 6 Gallon Water Heater has a 6-gallon capacity and measures 13.75 inches wide, 13.625 inches high, and 19.75 inches deep. Its mount arrangement is Front-Rear.
• What materials are used to construct the Kuuma 6 Gallon Water Heater? The Kuuma 6 Gallon Water Heater features a corrosion-resistant marine-grade aluminum case and a cladded aluminum tank. These materials are part of the unit's marine-oriented construction.
• What safety features are included with the Kuuma 6 Gallon Water Heater? The Kuuma 6 Gallon Water Heater includes a high-temperature limiter with automatic reset for safer operation. The unit is also ignition-protected for use on gasoline-powered boats, according to the product description.
• Does the Kuuma 6 Gallon Water Heater have front-mounted connections? Yes. The Kuuma 6 Gallon Water Heater has front-mounted plumbing connections for easier installation and service. The product description also states that all plumbing and electrical connections are located at the front.
• What are the electrical and heat exchanger specifications for the Kuuma 6 Gallon Water Heater? The Kuuma 6 Gallon Water Heater uses a 120V, 50Hz, 1500W electrical input with an L1 & N wiring configuration. Its heat exchanger is positioned at the front and uses aluminum, listed as Front/AL.
