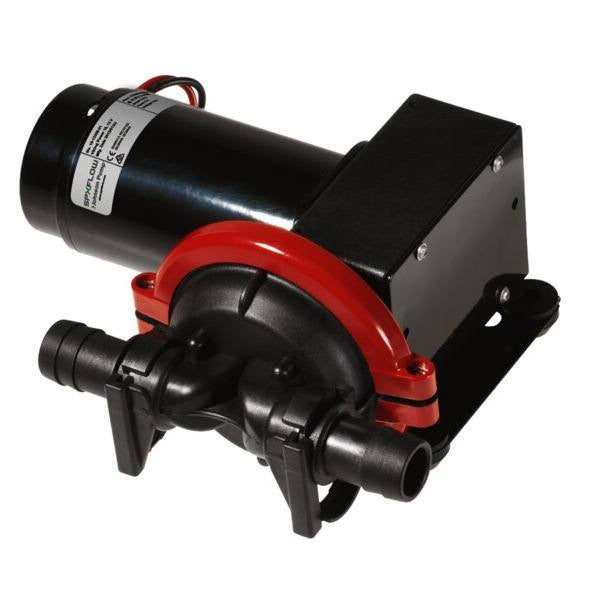

Johnson Pump VIKING POWER 16 12V

Johnson Pump 12V Viking Power 16 Waste Water Pump

The Johnson Pump Viking Power 16 is a modern single chamber waste water pump that offers set up in several different pump/motor configurations. The self-priming diaphragm is made of reinforced premium nitrile rubber and is able to be replaced without removing the pump from the system. Filters are unnecessary thanks to the non-choke valves. The quiet operating pump can be run dry and can handle a mixture of air and water without difficulty.

Features:

Robust single diaphragm

Reinforced nylon body

Quiet operation

Can be run dry

Low power consumption

Can pump air/water mixture

Non-Choke valves - no filters required

Easy to install even in tight spaces

Specifications:

Body: Nylon, glass-fiber reinforced

Valves: Nitrile rubber

Diaphragm: Reinforced nitrile rubber

Capacity, open flow: 4.2 GPM

Capacity at 0.1 bar: 4.0 GPM

Mas lift: 9.8 ft

Max head: 9.8 ft

Connection: 1" & 3/4" KlickTite XL connectors, 90° (Optional)

Voltage: 12

Fuse: 8 Amp

Length: 7.3"

Width: 8.9"/7.1"

Height: 4.6"/8"

Click here for the Viking Power 16 Installation Instructions
