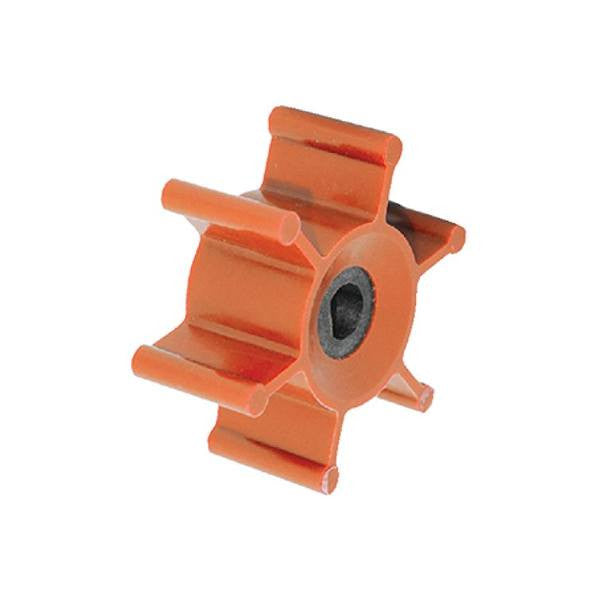

Johnson Pump Impeller Kit F4 Ez

Johnson Pump F4 Ballast Impeller Kit 2.00"

The Johnson Pump F4 Ballast Impeller is made of polyurethane and is specifically designed for ski/wakeboard boats' ballast pumps. This impeller is suitable for Johnson 10-24690 series ballast pumps.

Features:

Includes 7gms impeller lubricant

Significantly longer service life

Run dry capable

Specifications:

Material: Polyurethane

Outer diameter: 2.00"

Inner diameter: Flat

Width: 0.87"

Application:

Johnson Pump

10-24690-03EZ Ballast Pump

10-24690-04EZ Ballast Pump

10-24690-09 Ballast Pump

10-24690-10 Ballast Pump

10-24690-11 Ballast Pump

10-24690-12 Ballast Pump

Jabsco

18220-1127

Interchangeable with:

Johnson Pump

09-824P-1EZ

Jabsco

0303-007-P (Green)

Frequently Asked Questions

• What is the Johnson Pump F4 Ballast Impeller Kit 2.00" used for? The Johnson Pump F4 Ballast Impeller Kit 2.00" is a polyurethane replacement impeller specifically designed for ski and wakeboard boat ballast pumps. It is suitable for Johnson Pump 10-24690 series ballast pumps and includes 7 grams of impeller lubricant.
• Which ballast pumps are compatible with the Johnson Pump F4 Ballast Impeller? The impeller is suitable for Johnson Pump 10-24690-03EZ, 10-24690-04EZ, 10-24690-09, 10-24690-10, 10-24690-11, and 10-24690-12 ballast pumps. It is also listed for the Jabsco 18220-1127. Verify your pump model before installation.
• What are the dimensions of the Johnson Pump F4 Ballast Impeller? The Johnson Pump F4 Ballast Impeller has a 2.00-inch outer diameter, 0.87-inch width, and a flat inner diameter. The impeller is made from polyurethane. Verify these dimensions against the existing impeller and pump before replacement.
• Can the Johnson Pump F4 Ballast Impeller run dry? Yes. The Johnson Pump F4 Ballast Impeller is specified as run-dry capable. It is also designed for significantly longer service life compared with the information provided for the previous impeller.
• What lubricant is included with the Johnson Pump F4 Ballast Impeller Kit? The Johnson Pump F4 Ballast Impeller Kit includes 7 grams of impeller lubricant. The lubricant is included as part of the replacement impeller kit.
• What replacement impeller numbers are interchangeable with the Johnson Pump F4 Ballast Impeller? The Johnson Pump F4 Ballast Impeller is listed as interchangeable with Johnson Pump 09-824P-1EZ and Jabsco 0303-007-P (Green). Confirm the existing pump and impeller identification before using an interchangeable part number.
