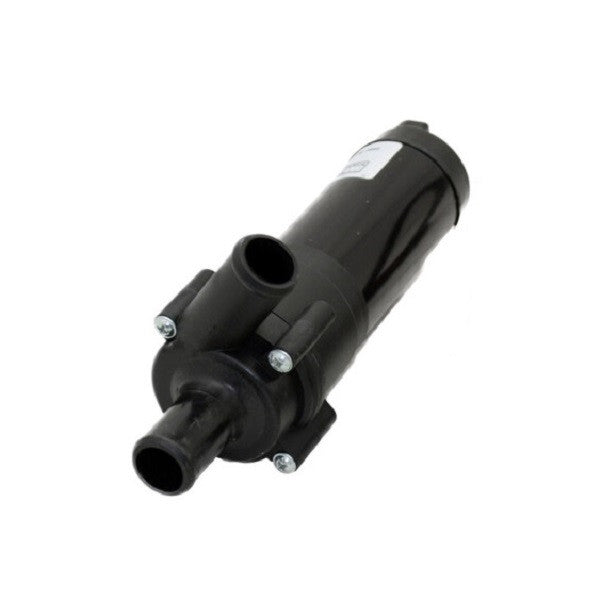

Johnson Pump CM10P7-1 12V CIRC. PUMP DIA16

Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump

The Johnson Pump CM10P7-1 is a heavy duty magnetically driven circulating pump. Compact but powerful, this is an ideal pump for circualtion duties such as water/antifreeze in heating systems or for circulating cooling fresh water. The CM series pumps by Johnson are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before switching on.

Features:

Pump Body: PPA, Thermoplastic

Shaft: Stainless Steel

Impeller: PPA, Thermoplastic

Specifications:

Voltage: 12

Port size: 5/8" or 3/4" hose

Minimum Liquid Temp: -40° F

Maximum Liquid Temp: 212° F

Dry running: 30 minutes max

Input Power: 14W Max

Mounting: Separate universal bracket for flat surfaces

Capacity: 4 GPM

Length: 6.97"

System Pressure: 2.5 bar max (36 psi)

Width: 2.68"

Height: 3.35"

Frequently Asked Questions

• What is the Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump used for? The Johnson Pump 10-24486-03 CM10P7-1 Circulation Pump is a heavy-duty magnetically driven centrifugal pump designed for circulation duties. Applications described for this pump include circulating water or antifreeze in heating systems and circulating cooling fresh water.
• What are the flow and pressure specifications of the Johnson Pump CM10P7-1 Circulation Pump? The Johnson Pump CM10P7-1 has a capacity of 4 GPM and a maximum system pressure of 2.5 bar (36 psi). It operates at 12V and has a maximum input power of 14W.
• What type of hose does the Johnson Pump 10-24486-03 CM10P7-1 use? The Johnson Pump CM10P7-1 is designed for use with 5/8-inch or 3/4-inch hose. Verify the hose size required for your circulation system before installation.
• What are the temperature limits for the Johnson Pump CM10P7-1? The Johnson Pump CM10P7-1 has a minimum liquid temperature rating of -40°F and a maximum liquid temperature rating of 212°F. These specifications define the listed liquid temperature range for the pump.
• Can the Johnson Pump CM10P7-1 run dry? The Johnson Pump CM10P7-1 can run dry for a maximum of 30 minutes. The pump is a normal-priming centrifugal pump and should be mounted so it remains flooded, or it should be primed before switching it on.
• What materials are used in the Johnson Pump 10-24486-03 CM10P7-1? The pump body and impeller are made from PPA thermoplastic, while the shaft is stainless steel. The pump uses a separate universal mounting bracket designed for installation on flat surfaces.
