Johnson Pump UNIVERSAL STRAINER 40 MESH NPT

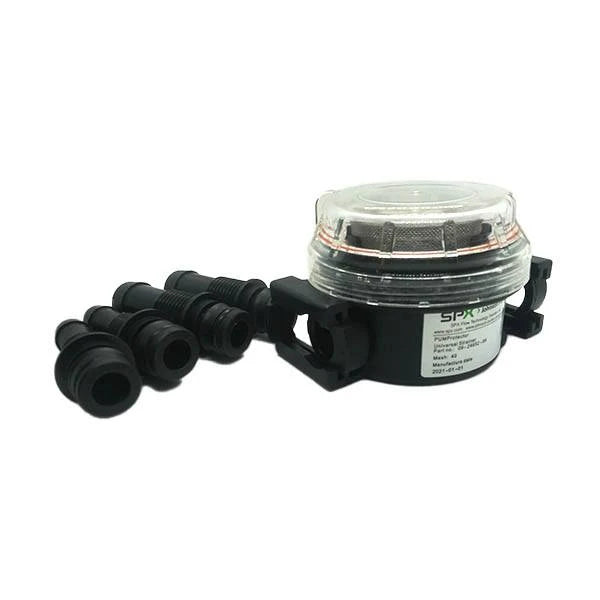

Johnson Pump 09-24652-02-CN Universal Strainer

The Johnson Pump Universal strainer is designed to work with a Water Pressure System to protect the pump from debris. Can be used in any pump system of relevant flow size. Able to me mounted between the water tank and pump and is easy to disassemble for cleaning. The clear acrylic cover allows for easy inspection.

Features:

Easy to maintain

Transparent cover

Variety of port connectors for simple installation

The design allows for removal of the entire unit for cleaning

Specifications

Mesh: 40

Strainer: Polyamide 66

Strainer Cover: Clear acrylic (Part # 09-36012)

Screen: 20 and 40 mesh stainless steel

O-rings: Silicone and EPDM

Max Liquid Temp: 120° F

Max Temp for drinking water: 85° F

KlickTite Connector: Built in KlickTite 2 x 1/2" hose / 3/8" BSP(NPT), 2 x 3/4" hose / 1/2" BSP (NPT)

Diameter: 3.15"

Height: 2.35"

Weigth: .33
