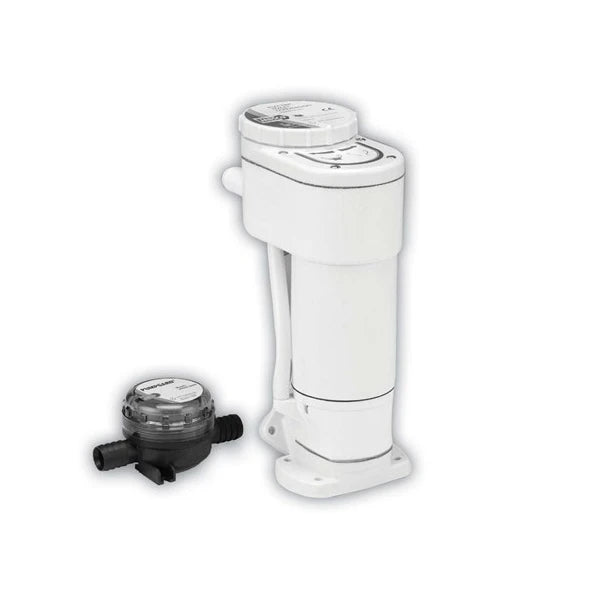

Jabsco Toilet Electric Conversion 12V

Jabsco Electric Toilet Conversion Kit 12V

This Jabsco Electric Toilet Conversion Kit is easy to install and simple to operate. This kit directly replaces the manual pump assembly for your marine toilet. Will fit all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Suitable for use in above or below waterline installations. This Conversion Kit meets ISO 8846 MARINE and USCG 183.410 for ignition protection. Waste pump discharges over an anti siphon loop up to 6 ft and out of a through hull fitting down to 3ft below the surface. Typical power consumption is less that 1.0 amp  / hour.

Specifications:

Voltage: 12V

Amp Draw: 24 Amp

Fuse Size: 25 Amp

Key Features:

Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets.

Suitable for use in above or below waterline installations

Built-in macerator with stainless steel chopper plate

Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection

Self priming up to 0.6m(2ft)

Waste pump discharges over an anti syphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface

Typical power consumption is less than 1.0 amp hour

Frequently Asked Questions

• What is the Jabsco Electric Toilet Conversion Kit 12V used for? The Jabsco Electric Toilet Conversion Kit 12V directly replaces the manual pump assembly on compatible marine toilets. It provides electric operation and includes a built-in macerator with a stainless steel chopper plate for waste discharge.
• Which toilets are compatible with the Jabsco Electric Toilet Conversion Kit 12V? This conversion kit fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Verify that your existing toilet is one of these listed models before purchasing or installing the conversion kit.
• Can the Jabsco Electric Toilet Conversion Kit 12V be installed above or below the waterline? Yes. The Jabsco Electric Toilet Conversion Kit 12V is suitable for both above- and below-waterline installations. Its waste pump can discharge over an anti-siphon loop up to 6 feet and through a hull fitting down to 3 feet below the surface.
• What are the electrical specifications for the Jabsco Electric Toilet Conversion Kit 12V? The conversion kit operates at 12V and has a listed amp draw of 24 amps. A 25-amp fuse is specified. The product description also states that typical power consumption is less than 1.0 amp hour.
• Does the Jabsco Electric Toilet Conversion Kit 12V include a macerator and self-priming pump? Yes. The Jabsco Electric Toilet Conversion Kit 12V includes a built-in macerator with a stainless steel chopper plate and is self-priming up to 0.6 meters (2 feet).
• What ignition-protection standards does the Jabsco Electric Toilet Conversion Kit 12V meet? The Jabsco Electric Toilet Conversion Kit 12V meets ISO 8846 MARINE and USCG 183.410 requirements for ignition protection, as specified in the product description.
