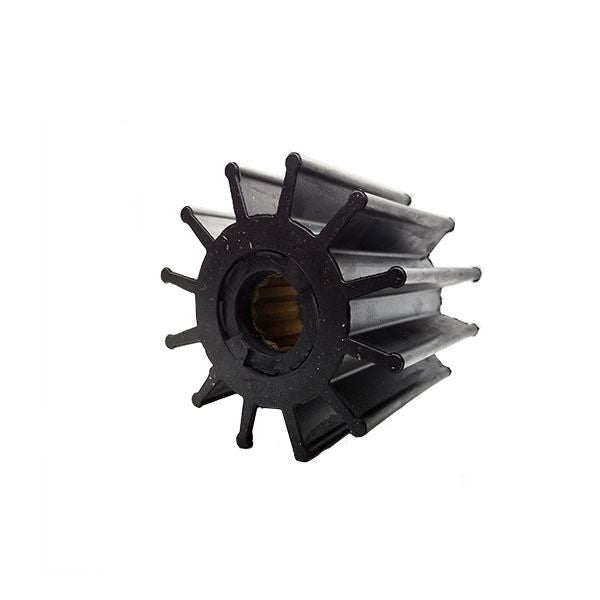

Jabsco Impeller Kit 17936-0001-P

Jabsco 17936-0001-P Impeller replaces Volvo/Johnson

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation. This impeller is designed for use with CAT, DDA, MAN, Volvo, Perkins, and Johnson Systems

Replaces:

CAT

4L8470

DDA

5196168

5198550

8924839

Johnson

09-814B

Specifications:

Diameter: 3-3/4"

Width: 3-1/2"

Shaft Diameter: 1"

Drive Type: Spline Drive

Material: Neoprene

Blades: 12

Jabsco 17936-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover
