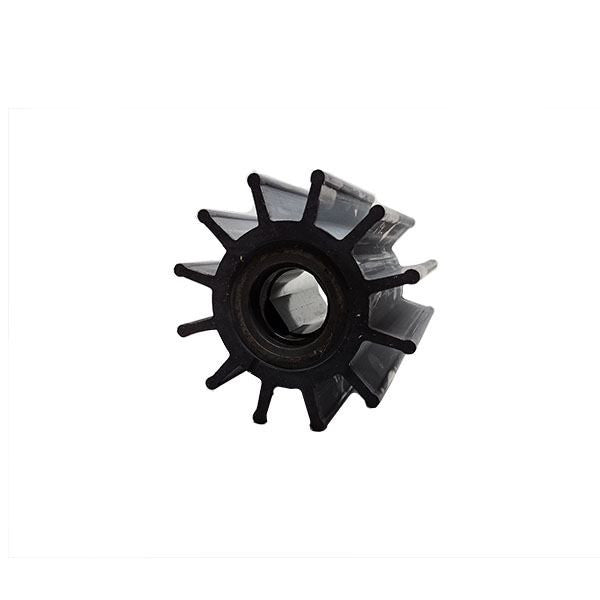

Jabsco Impeller Kit 17370-0001-P

Jabsco 17370-0001-P Impeller replaces Cummins 3008503

This Jabsco impeller is constructed from durable neoprene for a long working life. This water pump impeller comes with lubricant, a gasket and instructions for easy installation.

Replaces:

DDA

8927570

Cummins

3008503

CAT

3N-4859

Specifications:

Diameter: 3-3/4"

Width: 3-1/2"

Shaft Diameter: 1"

Drive Type: Double Flat

Material: Neoprene

Blades: 12

Jabsco 17370-0001-P Impeller Installation Instructions

Remove screws, endcover, and gasket

Remove old impeller using Jabsco removal tool

Remove any debris from pump chamber

Lubricate inside pump wall and grease

Insert replacement impeller into impeller bore with a twisting motion

Fit replacement gasket and endcover

Tighten endcover
