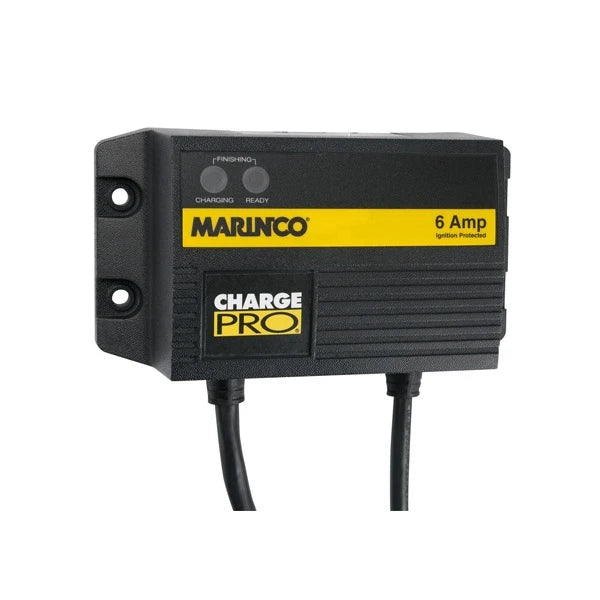

Marinco Guest Charger 6 Amp-1 Bank

Guest On-Board Battery Charger - 6A - 1-Bank

This Guest On-Board Battery Charger - 6A - 1-Bank is completely sealed and epoxy filled. It features non corroding housing for ultimate reliability and a microprocessor controlled for accurate charging. With intuitive operation and isolated outputs, this battery charger is designed for harsh marine and industrial environments. The outputs can be put in series or parallel for higher voltage or current.

Features:

Microprocessor Controlled For Accurate Charging

Isolated Outputs

IP68 Waterproof

Non Corroding Housing For Ultimate Reliability

Footprint Same As Former Charge Pro Guest Chargers

Intuitive Operation

Completely Sealed, Epoxy Filled

Charge Flooded, AGM Or Gel Batteries

Universal Input 120/230V Input For Go-Anywhere Freedom

Designed For Harsh Marine and Industrial Environments

Outputs Can Be Put In Series Or Parallel For Higher Voltage Or Current

Sense-Send Technology Senses The Power Needs Of Each Battery and Sends Correct Charge

ConnectCharge Plug For Easy Assembly To Inlet With No Wiring

Meet Global Industry Standards Including UL, CE, CSA, ABYC, California Efficiency Regulations (CEC)

Specifications:

Dimensions: 3.5"L x 6.4"W x 2.3"D

Input Voltage: 115 V 50/60 Hz AC

Input Amps (Max): 2.0 Amps

Input Voltage Range: 90-265A AC 50/60Hz

Output Volts: 12V DC

Charging Current: 6 Amp

AC Cable Length: 6 ft. (1.8M)

DC Cable Length: 4 ft. (1.2M)

Banks: 1

Protection Type: IP68 (Casing)

Absorption Charge Voltage (Per Bank): 14.3 V +/- 0.20 V

Float Charge Voltage (Per Bank): 13.3 V +/- 0.20 V

Rechargeable Battery Type: Any 12 V Lead Acid Batteries (Flooded and AGM)

Battery Charge Capacity (Based On 50% Drained Battery): Group 24 Through 31 (Up To 120 Amp-Hours)
