Groco Pipe To Hose Bronze Fitting

Groco Pipe to Hose Bronze Fitting

Groco bronze Pipe to hose fitting. Standard Flow - the hose ID is the same as the pipe size (ie: PTH-750 has 3/4" NPT pipe thread and accepts 3/4" ID hose).

Sizes from 1/2" to 5"

UL Listed 647B

Specifications:

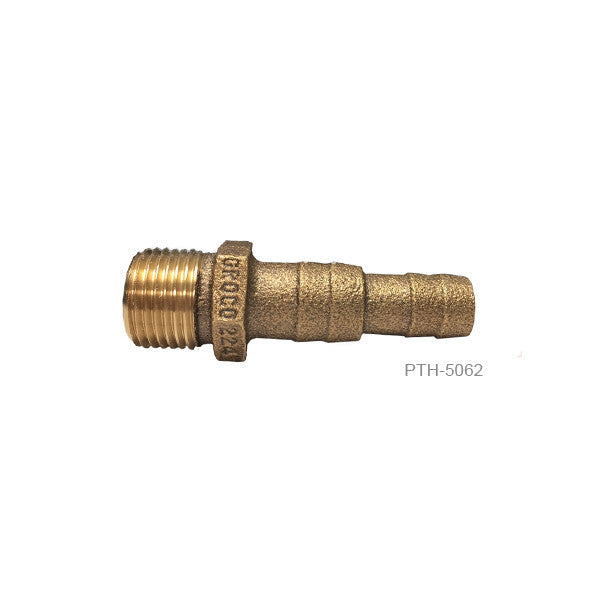

PTH-5062

Thread NPT: 1/2"

Hose ID: 1/2 or 5/8"

A: 2.7

B: 1.8

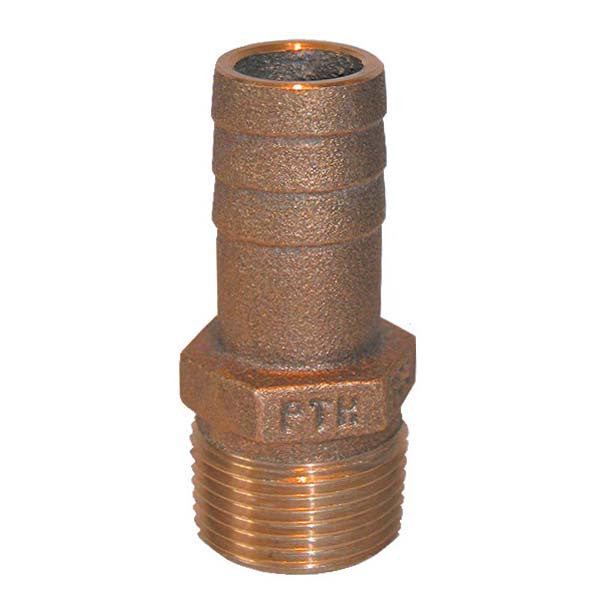

PTH-750

Thread NPT: 3/4"

Hose ID: 3/4"

A: 2.39

B: 1.38

PTH-1000

Thread NPT: 1"

Hose ID: 1"

A: 2.48

B: 1.38

PTH-1250

Thread NPT: 1-1/4"

Hose ID: 1-1/4"

A: 2.65

B: 1.55

PTH-1500

Thread NPT: 1-1/2"

Hose ID: 1-1/2"

A: 3

B: 1.9

Frequently Asked Questions

• What is the Groco Pipe to Hose Bronze Fitting used for? The Groco Pipe to Hose Bronze Fitting provides a standard-flow connection between NPT pipe threads and hose. The hose ID generally matches the pipe size, such as the PTH-750 accepting 3/4" ID hose with its 3/4" NPT thread.
• What sizes are available for the Groco Pipe to Hose Bronze Fitting? The Groco Pipe to Hose Bronze Fitting is available in sizes from 1/2" to 5". The supplied specifications list PTH-5062, PTH-750, PTH-1000, PTH-1250, and PTH-1500 models.
• What hose size does the Groco PTH-5062 fitting accept? The Groco PTH-5062 has a 1/2" NPT thread and accepts either 1/2" or 5/8" ID hose. Its listed A dimension is 2.7 and its B dimension is 1.8.
• What hose size does the Groco PTH-750 fitting accept? The Groco PTH-750 has a 3/4" NPT thread and accepts 3/4" ID hose. Its listed A dimension is 2.39 and its B dimension is 1.38.
• Are Groco Pipe to Hose Bronze Fittings UL listed? Yes. The Groco Pipe to Hose Bronze Fitting is UL Listed 647B according to the supplied product information.
