Garelick Under Plat Sliding Ldr-3 Step

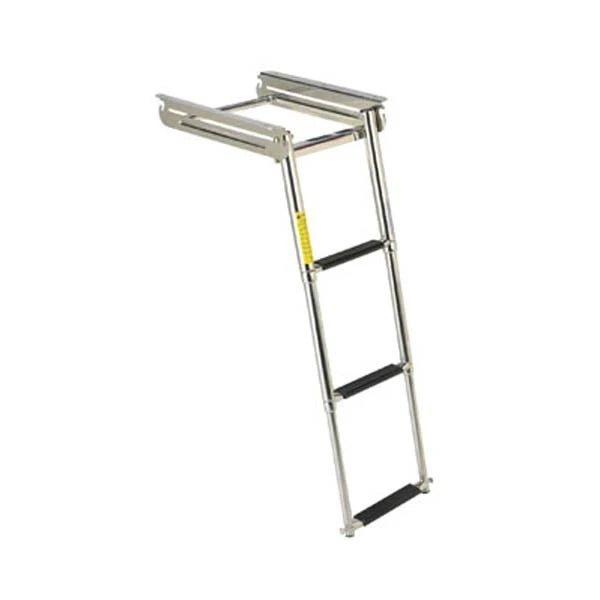

Garelick Under Platform Sliding Ladder

The Garelick Under Platform Sliding Ladder is a durable, convenient ladder that is designed for under platform use. This ladder stows easily and compactly within its own length when not in use. The spring-loaded locking mechanism secures the ladder when stowed. Constructed of stainless steel, the Garelick Sliding Ladder is rated for up to 400 lbs.

Features:

Ideal for under swim platforms or under the deck on bow or side of pontoon boats

Ladder stows compactly within its own length

Spring loaded self-locking for stowage

Flat poly treads for increased comfort

Stainless steel construction

Specifications:

Step Count: 3

Overall Height/Width: 3", 11.5"

Deployed Length: 33.5"

Stowed Length: 16"

Support Frame Dimensions: 15.85" L x 13.88" W

Mounting Holes: (3) 1/4" mount holes on each side; 6" spacing

Stainless Steel - rated to 400 lbs.

Click to Download Garelick Under Platform Sliding Ladder Installation Instructions

Frequently Asked Questions

• What is the Garelick Under Platform Sliding Ladder used for? The Garelick Under Platform Sliding Ladder is designed for under-platform applications, including under swim platforms or beneath the deck on the bow or side of pontoon boats. Its sliding design allows the ladder to stow compactly within its own length when not in use.
• How does the Garelick Under Platform Sliding Ladder stay secured when stowed? The Garelick Under Platform Sliding Ladder uses a spring-loaded, self-locking mechanism to secure the ladder in its stowed position. The ladder is designed to stow compactly within its own length for convenient storage.
• What is the Garelick Under Platform Sliding Ladder made of? The Garelick Under Platform Sliding Ladder is constructed of stainless steel and features flat poly treads designed for increased comfort.
• How much weight can the Garelick Under Platform Sliding Ladder support? The Garelick Under Platform Sliding Ladder is rated for up to 400 lbs.
• What are the dimensions of the Garelick Under Platform Sliding Ladder? The 3-step ladder has an overall height/width of 3" x 11.5", a deployed length of 33.5", and a stowed length of 16". The support frame measures 15.85" L x 13.88" W.
• What are the mounting hole specifications for the Garelick Under Platform Sliding Ladder? The Garelick Under Platform Sliding Ladder has three 1/4" mounting holes on each side, for a total of six mounting holes. The mounting holes have 6" spacing.
