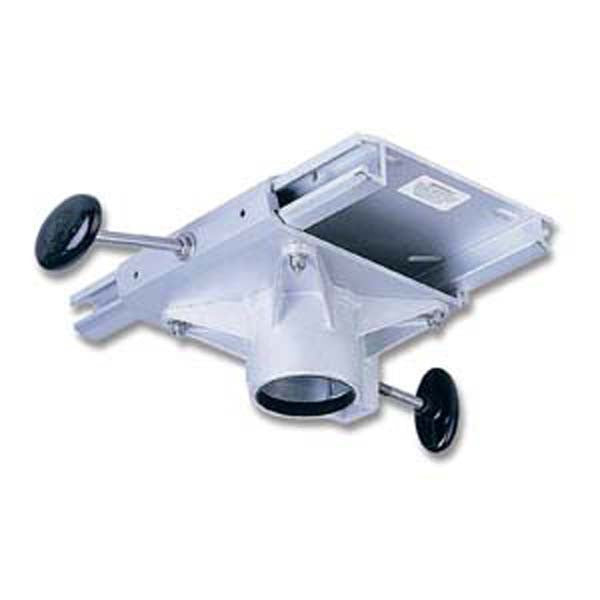

Garelick Seat Slide And Swivel 7"-2 7/8

Garelick Standard Series Seat Slide and Swivel 75083S

Features:

Provides smooth fore and aft travel and 360° seat rotation

Adds comfort and stability for any swivel boat seat

Mounts underneath seat and on top of pedestal stanchion

Compatible with any 2 7/8"(7cm) diameter tube

Convenient handles provide solid locking at any position

Meets ABYC-H31, Type A Standards & Garelick performance standards

Anodized aluminum for added protection from saltwater corrosion and weathering

Includes retaining hardware (99300) to prevent inadvertent detachment

7" (18cm) Fore and Aft Travel 8.5" W x 13" L (22cm x 33cm) Required on Roto molded Seat Models (Includes 75081 & 99023)

Adds 1 5/8" (4cm) to height. Hole Pattern: 5" x 12" (13x30cm)

Assembly & Installation Instructions

Frequently Asked Questions

• What is the Garelick Standard Series Seat Slide and Swivel 75083S used for? The Garelick Standard Series Seat Slide and Swivel 75083S provides smooth fore and aft seat travel and 360° rotation for swivel boat seats. It mounts underneath the seat and on top of the pedestal stanchion, adding 1-5/8" to the seating height.
• How much travel does the Garelick Standard Series Seat Slide and Swivel 75083S provide? The Garelick Standard Series Seat Slide and Swivel 75083S provides 7" of fore and aft travel. Convenient handles allow the seat to lock securely at any position within the slide's travel range.
• What pedestal tube is compatible with the Garelick 75083S Seat Slide and Swivel? The Garelick Standard Series Seat Slide and Swivel 75083S is compatible with any 2-7/8" diameter tube. Verify that your pedestal stanchion has the specified tube diameter before selecting this seat slide and swivel.
• What mounting hole pattern does the Garelick 75083S Seat Slide and Swivel use? The Garelick Standard Series Seat Slide and Swivel 75083S has a 5" x 12" mounting hole pattern. The unit measures 8.5" wide by 13" long, so verify the mounting dimensions against your boat seat before installation.
• Is the Garelick Standard Series Seat Slide and Swivel suitable for saltwater use? The Garelick Standard Series Seat Slide and Swivel 75083S is made from anodized aluminum for added protection from saltwater corrosion and weathering. It also meets ABYC-H31, Type A Standards and Garelick performance standards.
• Does the Garelick 75083S Seat Slide and Swivel include retaining hardware? Yes. The Garelick Standard Series Seat Slide and Swivel 75083S includes retaining hardware, part number 99300, designed to prevent inadvertent detachment. The product description also notes that retaining hardware is included with the assembly.
