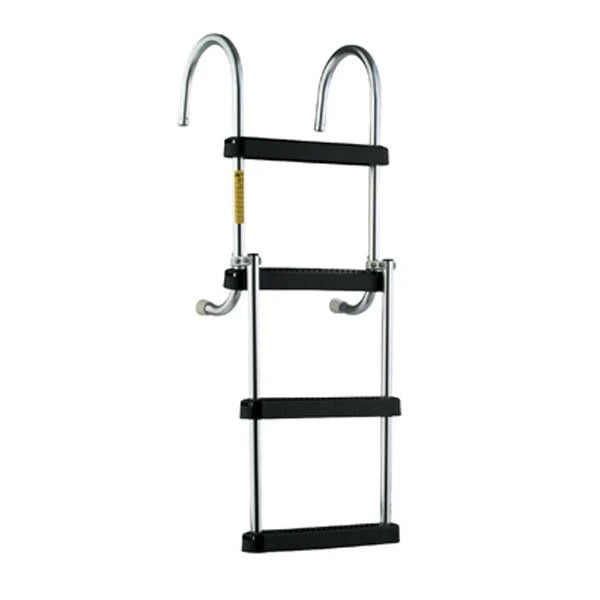

Garelick 4 Step Pontoon Folding W/Cups

Garelick Removable Folding Pontoon Boarding Ladder w/ Deck Mounting Cups

Features:

Folds down to 4 steps; hooks fold and ladder stows in locker underneath furniture

Securing clip included

Sturdy design with overrail hooks for easy boarding

Lightweight anodized aluminum 1" (3cm) diameter resists corrosion

Attaches easily to deck at side gate for temporary or permanent mounting with black poly deck mounting cups

Comfortable contour black traction molded steps

250 lb. capacity

Includes deck mounting cups

Made in the U.S.A.

Deck Mounting Cups - For use with 12350-21 ladder

Deck Mounting Cups - UV resistant durable black poly

Dimensions:

4 step, Fold Down L: 30" + 13" (76cm + 33cm), W: 16" (4 1cm)

Mounting Instructions

HOW TO ASSEMBLE GARELICK REMOVABLE FOLDING PONTOON BOARDING LADDER W/ DECK MOUNTING CUPS

Assembly Instructions:

This ladder is designed to be mounted on the pontoon at the side gate.

Fold out hooks. Slip ladder catches onto ends of both ladder hooks.

Position and mark four mounting holes on deck surface.

NOTE: Make certain ladder standoffs are at or below the centerline of the pontoon floats.

Drill 8 marked holes with 1/8” diameter drill bit. Secure the ladder catch using the included screws.

NOTE: The rubber gasket must be inside catch for proper operation. Larger opening in catch must face away from the ladder and into the deck area.

Attach ladder to deck by inserting hooks into large opening in catch slot. Slide latch bolts down into slot.

Make certain ladder hands perpendicular to water surface. Ladder standoffs can be cut as necessary.

To cut standoffs, remove the rubber tips, cut to desired length, and reinstall tips.

Rubber tipped standoffs on ladder are intended to abut the pontoon float and cushion the ladder.

To remove ladder, slide up and then pull out of catches.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Safety:

This ladder is designed for boat use only

Never operate your boat with the ladder in positon. Serious injury or damage to your boat or ladder may result.

Information sourced from Garelick Pontoon Ladders Product Technical Information.

Frequently Asked Questions

• What is the Garelick Removable Folding Pontoon Boarding Ladder used for? The Garelick Removable Folding Pontoon Boarding Ladder is designed for boarding a pontoon boat at the side gate. It features overrail hooks and deck mounting cups that allow the ladder to be installed for temporary or permanent use.
• How does the Garelick Removable Folding Pontoon Boarding Ladder stow? The Garelick Removable Folding Pontoon Boarding Ladder folds down to four steps, while its hooks fold for compact storage. The ladder is designed to stow in a locker underneath the pontoon furniture, and a securing clip is included.
• What is the Garelick Removable Folding Pontoon Boarding Ladder made from? The Garelick Removable Folding Pontoon Boarding Ladder is constructed from lightweight anodized aluminum with a 1-inch diameter. It features contoured black traction-molded steps and has a 250-pound capacity.
• What are the deck mounting cups included with the Garelick Pontoon Ladder? The ladder includes black poly deck mounting cups designed for use with the 12350-21 ladder. The cups are made from durable, UV-resistant black poly and provide the deck mounting points for the removable ladder.
• How do you remove the Garelick Folding Pontoon Boarding Ladder? To remove the Garelick Removable Folding Pontoon Boarding Ladder, slide the ladder upward and then pull it out of the deck mounting catches. This allows the ladder to be removed when it is not needed.
• Are there any safety requirements for the Garelick Pontoon Boarding Ladder? The Garelick Removable Folding Pontoon Boarding Ladder is design…
