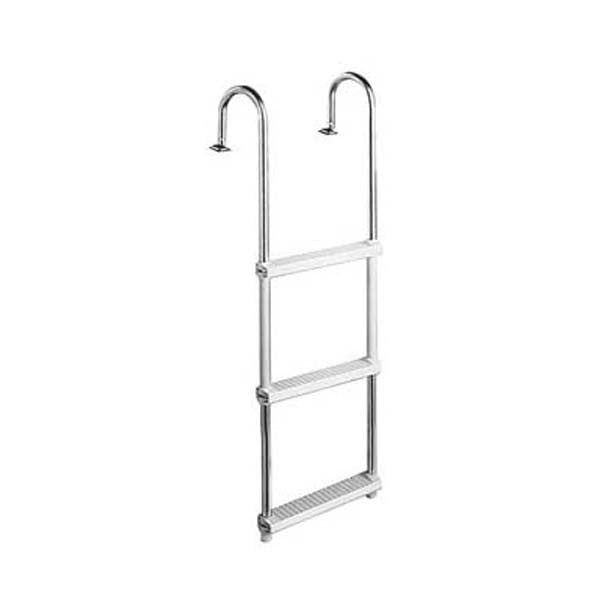

Garelick 4 Step Pontoon Ladder

Garelick Pontoon Swim Ladder

Features:

For use at pontoon side gate or transom

Attaches easily to deck with included Shur-loc catches (76000)

Vinyl sleeves on verticals protect pontoon

Hooks fold flat for stowage

Durable 1" (3cm) diameter Anodized aluminum tube.

Comfortable white traction molded poly steps.

Shur-loc catch brackets (76000) allow for permanent or removable mounting.

Dimensions:

3 step, L 36” (91cm), W 15” (38cm)

4 step, L 50” (127cm), W 15” (38cm)

Mounting Instructions

HOW TO MOUNT GARELICK PONTOON SWIM LADDER

Mounting Instructions:

This ladder was designed to be mounted on the pontoon at the side gate.

Slip ladder catches onto ends of both ladder hooks. Position and mark four mounting holes on boat deck.

Secure ladder catches in position by drilling eight holes with a 9/64” drill bit and using screws.

Note: Larger opening must face away from ladder and rubber gasket must be inside catch for proper operation.

Attach ladder to boat by inserting hooks of ladder into large opening of catch slot. Slide ladder down.

Make certain that ladder hangs perpendicular to water surface.

Vinyl sleeves between first and second step on verticals are intended to abut pontoon and cushion ladder.

To remove ladder, slide up and then pull out of catch. Hooks fold flat for easy stowage.

Safety:

Do not use ladder when the boat’s motor is running.

Information sourced from Garelick Mounting Instructions for Swimming Ladder Model 15240
