Garelick Out Of Sight Telescoping Ladder

Garelick Out of Sight Telescoping Ladder

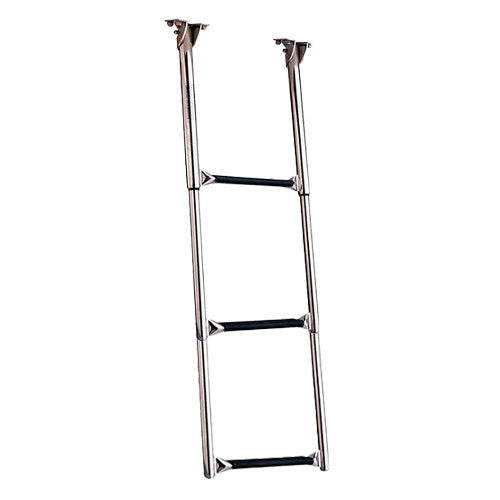

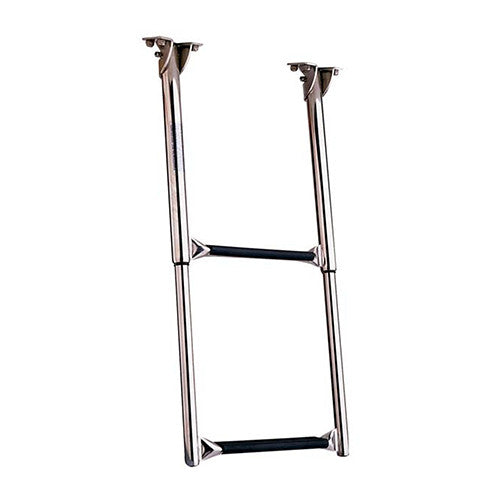

The Garelick Out of Sight Telescoping Ladder is a great choice for boaters looking to easily stow their ladder when not in use. When needed, this ladder easily telescopes down into the water. Once the ladder is no longer needed, it slides up and under the swim platform for stowage. This durable ladder is constructed of stainless steel and features a self-locking angled support bracket. Flat poly treads ensure comfort and ease of use. The Garelick Out of Sight Telescoping Ladder comes with mounting hardware, a bungee cord securing strap, and installation instructions. 2 and 3 step models available.

Features:

Steps telescope down easily

Ladder slides up, under platform for stowage

Flat poly treads for increased comfort

Mounting hardware and securing strap included

Self-locking angled support bracket

Bungee cord securing strap included

Electropolished Stainless Steel - rated to 400 lbs.

Specifications:

Part #

Step Count

Overall Height/Width

Deployed Length

Stowed Length

19622-61

2

2.5" (6cm), 11.38" (29cm)

23.25" (59cm)

13.5" (34cm)

19623-61

3

2.5" (6cm), 11.63" (30cm)

34.5" (88cm)

14.5" (37cm)

Mounting Instructions:

Position the mounting bracket with the ladder in the area to be attached. Mark the bracket’s four mounting holes onto the deck surface.

Drill the four marked holes with a suitable drill bit.

NOTE: It is recommended to through0bolt this ladder for a secure installation

Mount the ladder in place on one side by putting the ladder into the bracket and placing it up to the drilled holes.

Insert mounting screws. Secure the ladder in place with fasteners (not provided, as installations vary).

Slide the other mounting bracket, onto the ladder vertical as before. Center the ladder tubes within the brackets and make sure they are parallel to each other.

Mark the hole locations of this bracket onto the deck. Drill holes and secure in place.

When underway, fold ladder up and secure using the Velcro strap provided.

Maintenance:

Periodically check mounting hardware and re-tighten (due to normal boat operation).

Regular fresh water rinsing and periodic cleaning with a mild abrasive cleaner will help retain luster and help prevent corrosion.

Safety:

This ladder is designed for boat use only

Never operate your boat with the ladder in position. Serious injury or damage to your boat or ladder may result.

Information sourced from Garelick Instructions for 19622-61, 19623-61 Under Platform Telescoping Ladder
