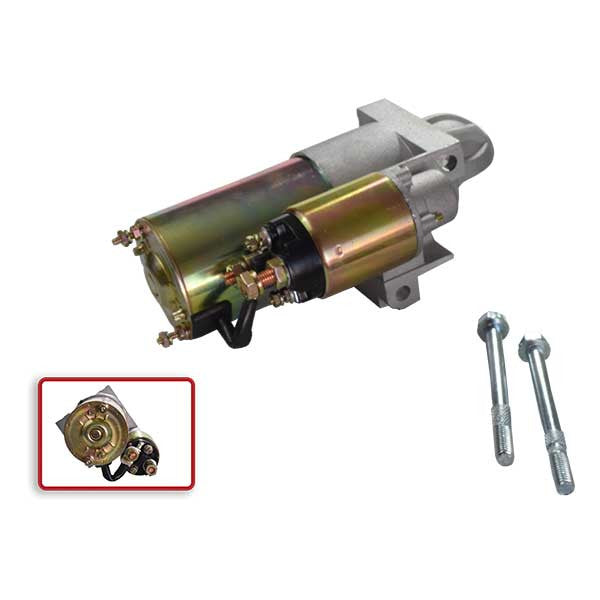

EMP Starter (REP 18-5913-1)

EMP 50-35863 Volvo/MerCruiser Boat Starter

This EMP electric starter is an aftermarket replacement engine part for MerCruiser, Volvo, and OMC.

Boat Starter Application:

• For MerCruiser engines with 14" flywheels, 11 tooth and offset bolt pattern.
• For Volvo 1989 & Later 4.3L, V6 & 5.0-7.4L, V8 GM gas engines
• For OMC 1995-98 4.3L, B6, 150-65HP ; 5.0-7.4L V8, 185-330 HP GM engines
• Replaces:

MerCruiser

Volvo

OMC

812428A3

872394

3855177

812604A2

3856004

3854751

822330A2

3857625

864340A2

Interchange:

Sierra

18-5913-1

ARCO

30470

Boat Starter Motor Installation Instructions

These instructions provide a general procedure to the removal and installation of the starter. Refer to the vessel manufacturer's repair manual for detailed instructions. Check and follow all safety precautions outlined in the vessel manufacturer's repair manual.

WARNING: Disconnect the battery cables starting with the negative cable prior to removal of starter to eliminate electrical shock hazard.

Before Replacing the Starter

Verify the Starter is nonfunctional. It can be tested using a voltmeter, carbon pile load tester and clamp-on style ammeter.

Verify the batteries are fully charged and battery terminals are clean and firmly in place. Check battery cable for tears or signs of corrosion.

Verify all fuses are good

Check all wiring connections leading to the starter for cracks, discoloration, or signs of overheating. If any are present the connections must be replaced.

Boat Starter Removal Instructions

Ensure the ignition is off and remove the negative (ground) battery cable from the battery

Disconnect all wire connections and plugs from the starter. Note their location and identify each one. This will help make installation of the replacement easier.

Loosen the starter mounting bolts. For easier installation of the replacement starter note the location of any shims, heat shields, and support brackets.

Remove mounting bolts, tilt, or rotate starter to clear flywheel and transmission housing and remove starter from the vessel. Note positions of any shims. Shims can be stuck to either the engine mounting or the mounting pads of the starter

Inspect starter drive teeth for damaged pinions. If drive is damaged it is important to inspect the flywheel or ring gear for broken or worn teeth. A broken or worn ring gear must be replaced or it will cause damage to the new starter and void the manufacturer's warranty.

New Boat Starter Installation Instructions

Check and compare the original starter to the replacement. All wire connectors, plug connectors, hardware, and mounting holes should be compatible.

Install the replacement starter reusing all mounting hardware from the original starter. Refer to the vessel repair manual for the torque nuts and bolts that meet the manufacturer's required specifications

Reconnect all electrical connections of the replacement starter to the correct terminals. Ensure all connectors are clean and fit properly.

Reconnect the battery cable starting with the positive connections first.

Place the removed starter in the replacement starter box for proper core return.

Frequently Asked Questions

• What is the EMP 50-35863 Volvo/MerCruiser Boat Starter used for? The EMP 50-35863 is an aftermarket replacement starter for select MerCruiser, Volvo, and OMC marine engines. It is designed for MerCruiser engines with 14" flywheels, 11-tooth starters, and an offset bolt pattern, with additional applications listed for Volvo and OMC GM gas engines.
• What MerCruiser engines does the EMP 50-35863 Boat Starter fit? The EMP 50-35863 Boat Starter is specified for MerCruiser engines with 14" flywheels, 11 teeth, and an offset bolt pattern. It replaces listed MerCruiser starter numbers including 812428A3, 812604A2, 822330A2, and 864340A2. What Volvo and…
