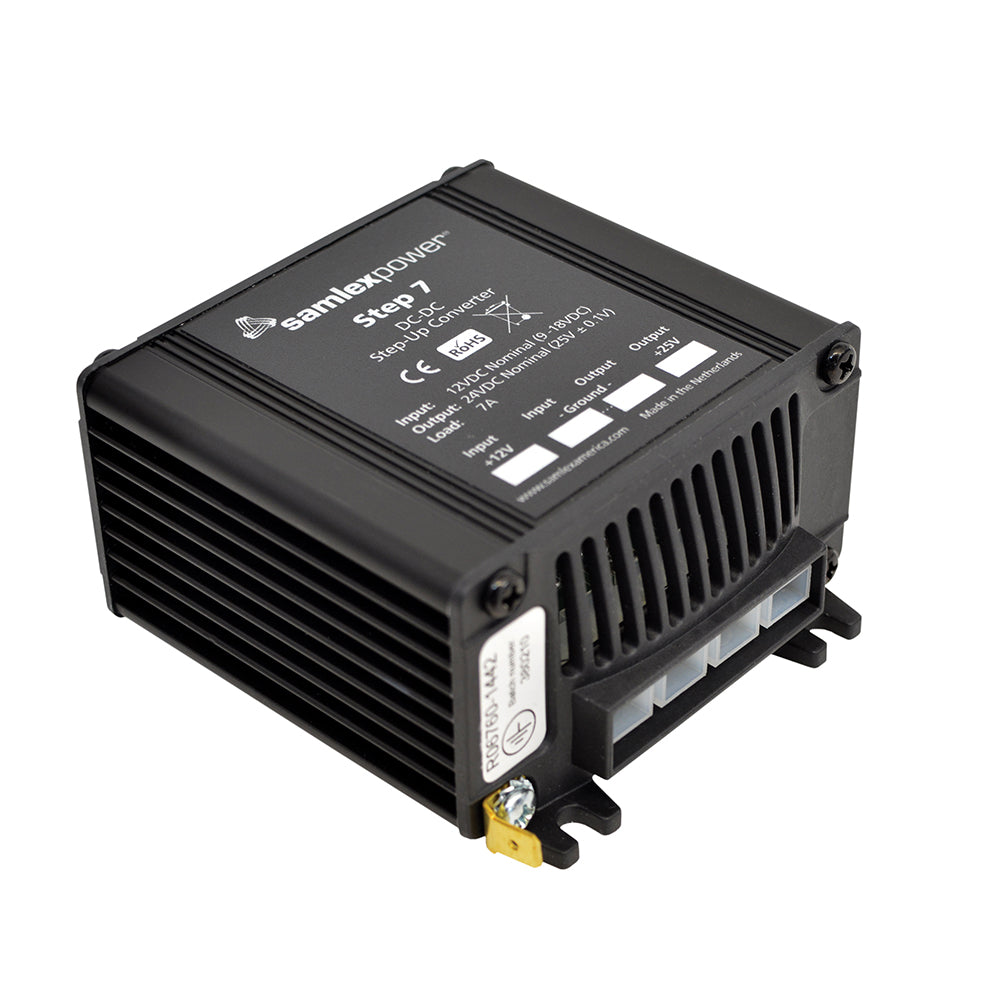

Samlex America Step-Up DC-DC Converter 7A 9-18V Input 24V Output

Step-Up DC-DC Converter - 7A - 9-18V Input - 24V Output

Features:

• Step up from 12VDC to 24VDC at 7 Amps DC
• Switch Mode design
• CE approved
• High Efficiency
• Over-current protection
• Over-voltage, Reverse Polarity protection
• 6.3 mm push-on flat pin connectors

Specifications:

• Input: 9-18 VDC
• Output: 24 VDC
• Amps: 7 Amps
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 5 x 3.5 x 2 (in)
• Dimensions: 12.7 x 8.9 x 5.1 (cm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Industrial
• Commercial
• OEM
• Recreational
• Marine

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's manual: https://productimageserver.com/literature/ownersManual/67271OM.pdf

Brochure: https://productimageserver.com/literature/brochure/67271BR.pdf
