CMC Marine Pl65Hs 5.5" Set'B W/Gauge

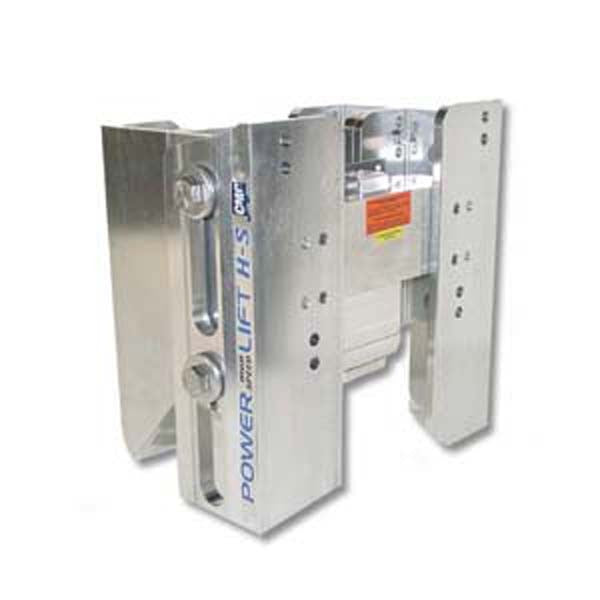

CMC High Speed Hydraulic Power-Lift Transom Jack 5-1/2" Set Back - T-H-65301

The dependable, self-contained and water proof CMC High Speed Hydraulic Power-Lift Transom Jacks have a maximum lifting capacity of 7853 pounds of thrust, more than any other transom jack.

Features:

Comes with Gauge

5-1/2" Set Back

Model PL-65-10HS

Newest addition to the CMC product line

Will raise V6 300 HP and smaller outboard motors in approximately 8 seconds! Which is twice as fast as the regular PL-65.

Ideal for those who want a jack plate for high speed positioning of their outboard motor!

Mounting Hardware Included

Not designed for V8 motors

Ideal for fresh or salt water use

Roller design means less friction, longer wear, less maintenance, and virtually no binding problems

Full stroke in 8 seconds

Frequently Asked Questions

• What is the CMC High Speed Hydraulic Power-Lift Transom Jack T-H-65301 designed for? The CMC High Speed Hydraulic Power-Lift Transom Jack T-H-65301 is designed for high-speed positioning of an outboard motor. It provides 5-1/2 inches of setback and can raise V6 outboard motors rated at 300 HP and smaller in approximately 8 seconds.
• What outboard motors is the CMC T-H-65301 compatible with? The CMC T-H-65301 is designed to raise V6 outboard motors rated at 300 HP and smaller. It is not designed for V8 motors, so verify your engine configuration before installation.
• How quickly does the CMC T-H-65301 raise an outboard motor? The CMC High Speed Hydraulic Power-Lift completes its full stroke in approximately 8 seconds. The supplied product information states that this is twice as fast as the regular PL-65, making it suitable for applications where rapid outboard positioning is desired.
• What is the lifting capacity of the CMC High Speed Hydraulic Power-Lift? The CMC High Speed Hydraulic Power-Lift has a maximum lifting capacity of 7,853 pounds of thrust. It uses a self-contained, waterproof hydraulic design and a roller system intended to reduce friction, extend wear, reduce maintenance, and minimize binding problems.
• Can the CMC T-H-65301 be used in fresh and salt water? Yes. The supplied product information states that the CMC High Speed Hydraulic Power-Lift is ideal for both fresh and salt water use. The unit has a self-contained and waterproof design for marine applications.
• What is included with the CMC High Speed Hydraulic Power-Lift Transom Jack? The CMC T-H-65301 includes a gauge and mounting hardware. The unit is identified as model PL-65-10HS and provides 5-1/2 inches of setback.
