CE Smith Short Bunk Style Boat Guide

CE Smith Short Bunk-Style Carpeted Boat Trailer Guide-Ons

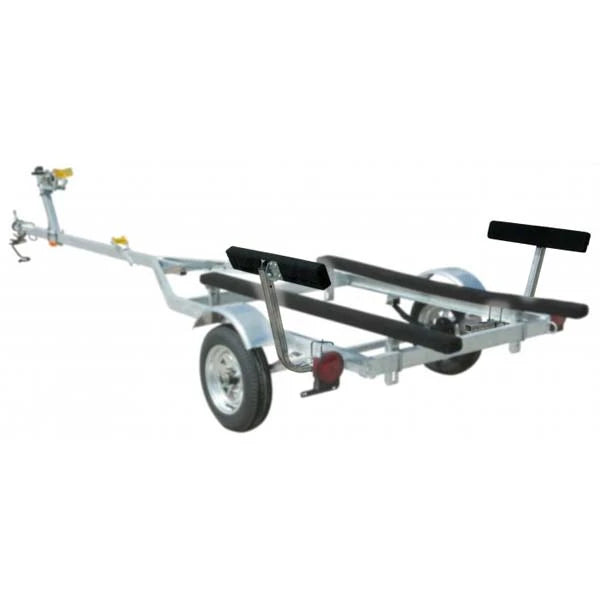

CE Smith Short Bunk-Style Trailer Guide-Ons make loading and unloading your boat easy. These carpeted trailer guide-ons provide proper center loading even in windy or side current conditions. Bunk boards are constructed of durable untreated Southern yellow pine and are covered in high-grade marine carpet.

Features:

Durable carpeted bunk boards

Boards tilt to hug the hull

Can be mounted on top of frame for extra height

Comes complete with mounting hardware to fit frames up to 3" wide x 4-1/4" high

Specifications:

2" x 4" x 24" Boards tilt to hug the hull

1-1/2" Square pre-galvanized uprights, angled out at 75°

Height of 21'' with adjustment out to 13" from frame on each side

Note: For larger trailer frames, check out the CE Smith Large Frame U-Bolt Kit

How to Install CE Smith Short Bunk Style Boat Guide-Ons

Place U-bolts as shown for either 2" wide or 3" wide frame.

Use (1) flat u-bolt and (1) formed u-bolt with washers and nuts to loosely attach each u-shaped bracket under or on top of trailer frame.

Insert the short end of guide-on upright posts into each of the u-brackets to the desired width. Note: Do not fully tighten bolts

Make sure the upright posts are seated level in the u-brackets before completely tightening the u-bolts. Finish tightening the u-bolt connections.

Attach left and right bunk assemblies to upright posts with 3/8"-16 x 2-1/4" hex head bolts, washers and nuts. Adjust angle of bunks as desired and tighten connections to hold in place.

Insert a black plastic cap on top of each upright post.

Click to Download CE Smith Short Bunk Style Boat Guide Installation Instructions
