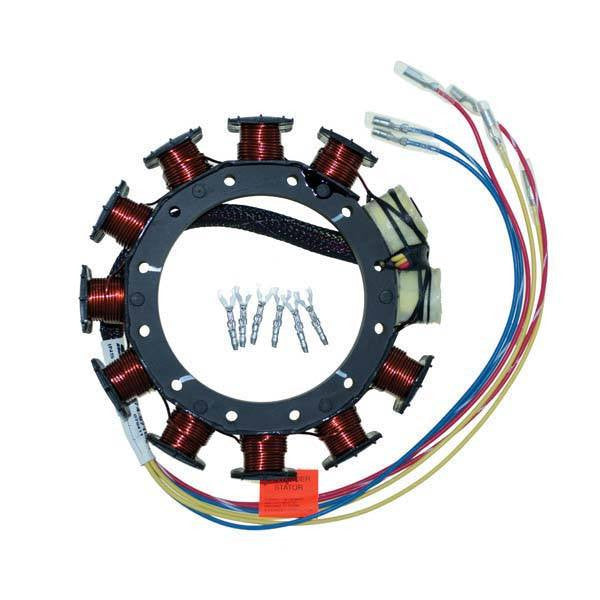

Sierra CDI 174-9710K-1 Mercury Mariner Stator 2/3 & 4 Cyl. 16 Amp

CDI 174-9710K-1 Mercury Mariner Stator - 2/3 & 4 Cyl. - 16 Amp

Fits:

1987 - 1997 45, 50, 55, 60, 65, 70, 75, 80, 90, 95 hp 3 Cylinder Engines

1989 - 1997 400, 80, 100, 115, 120, 125 4 Cylinder Engines

Replaces:

174-9710K-1

398-818535A17

398-818535A18

398-9710A11

398-9710A12

398-9710A14

398-9710A15

398-9710A17

398-9710A18

398-9710A22

398-9710A23

398-9710A25

398-9710A2

8398-9710A30

398-9710A31

398-9710A33

398-9710A34

398-9710A35

398-9710A36

398-9710A38

398-9710A39

398-9710A43

398-9710A45

398-9710A46

398-9710A47

398-9710A48

398-9710A49

398-9873A-9

398-9873A17

398-9873A24

398-9873A25

398-9873A29

398-9873A32

398-9873A33

398-9873A35

398-9873A38

F747095

*Not for use with Flywheels with Bolted-In Magnets.

**Requires a Voltage Regulator

Frequently Asked Questions

• What is the CDI 174-9710K-1 Mercury Mariner Stator used for? The CDI 174-9710K-1 Mercury Mariner Stator is a 16-amp stator for select Mercury and Mariner 2/3- and 4-cylinder outboard engines. It is listed for specific 3-cylinder applications from 1987 through 1997 and 4-cylinder applications from 1989 through 1997.
• What Mercury Mariner engines does the CDI 174-9710K-1 stator fit? The CDI 174-9710K-1 fits 1987-1997 45, 50, 55, 60, 65, 70, 75, 80, 90, and 95 HP 3-cylinder engines. It also fits 1989-1997 400, 80, 100, 115, 120, and 125 HP 4-cylinder engines. Verify your engine's year, horsepower, and cylinder configuration before ordering.
• Is the CDI 174-9710K-1 stator a 16-amp unit? Yes. The CDI 174-9710K-1 is identified as a 16-amp Mercury Mariner stator. The listed applications cover select 3-cylinder and 4-cylinder engines within the specified model-year ranges. Confirm your specific engine application to ensure this stator matches the required configuration.
• What part numbers does the CDI 174-9710K-1 stator replace? The CDI 174-9710K-1 replaces the part numbers listed in the product description, including 174-9710K-1, multiple 398-818535A and 398-9710A numbers, several 398-9873A numbers, 8398-9710A30, and F747095. Compare your existing stator part number with the listed replacement numbers before ordering.
• Can the CDI 174-9710K-1 be used with any Mercury Mariner flywheel? No. The product description specifically states that the CDI 174-9710K-1 is not for use with flywheels with bolted-in magnets. Verify your flywheel configuration before installing this stator to make sure the application is compatible.
• Does the CDI 174-9710K-1 stator require a voltage regulator? Yes. The product description states that the CDI 174-9710K-1 requires a voltage regulator. This requirement should be considered when verifying the electrical system for your Mercury or Mariner outboard before purchasing or installing the stator.
