Bob's Machine Shop Versa Jac Manual Jack Plate

Bob's Machine Versa Jac Manual Jack Plate

Bob's Machine Versa Jac Manual Jack Plates are high-quality manual jack plates that provide boaters with the option to upgrade to a Hydraulic at a later date. Made of high-quality, aircraft-grade aluminum, the Versa Jac jack plate has the same sharp look as Bob's popular line of hydraulic jacks while providing optimal durability. These jack plates have a one piece design, unlike competitors that require setback spacers to achieve the proper setback. Versa Jacs are available in 4", 6", and 10" setbacks, and are rated for engines up to 300 HP. While the boat is in the water, the Versa Jac can easily be adjusted for optimum results.

When it's time to upgrade from manual to an all-hydraulic operation, converting the Versa jack plate is simple. Using a few hand tools, the Versa's manual screw assembly can be removed and swapped out for a hydraulic cylinder kit. A pump can then be installed inside the boat.

Features:

Rated for 300 HP, up to 625 lbs. motors

Provides 7.5" of lift

Manual operated jack plate

Easily upgrades to full hydraulic operation if desired

Has same look as Bob's popular line of hydraulic jacs

Easily adjusts for optimum results while on the water

Automotive grease fittings

Adjustable tension rods

Made in the USA

Specifications:

Transom side mounting dimensions: 16-3/4" W x 13-3/4" H

Motor side OAW is 18-1/4"

Motor side mounting width: 18-1/4"

Part #

Model

Weight

Max HP

Setback

100-504100

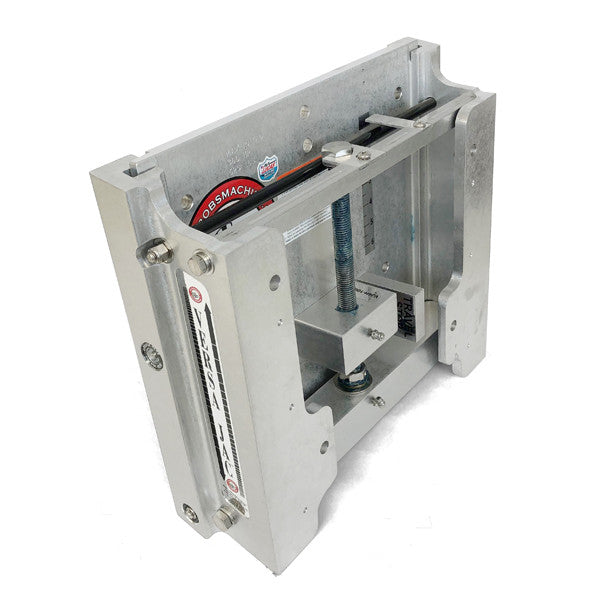

4" HD Versa

40 lbs.

300 HP

4"

100-506000

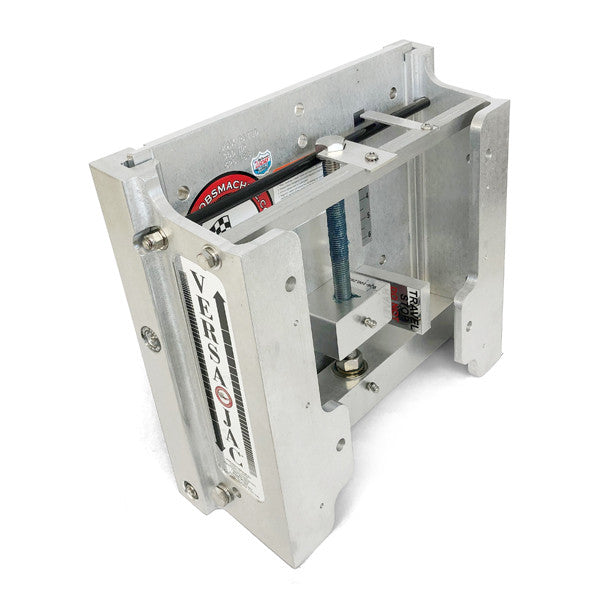

6" Versa

41 lbs.

300 HP

6"

100-510000

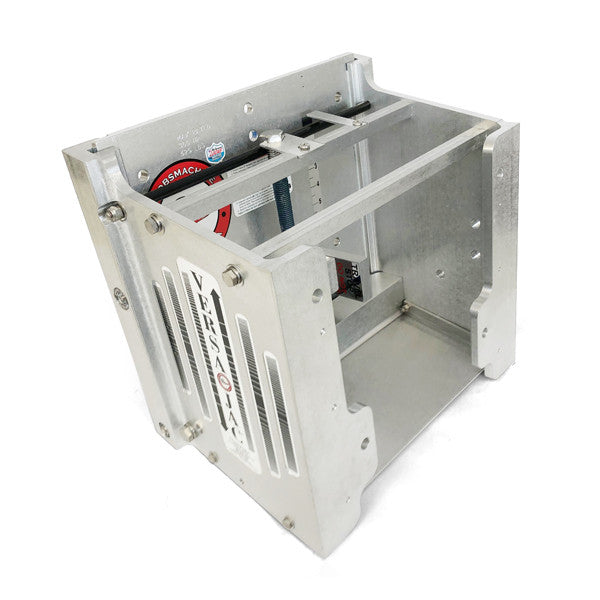

10" Versa

49 lbs.

300 HP

10"

Warranty:

Limited lifetime on structure

Frequently Asked Questions

• What is the Bob's Machine Versa Jac Manual Jack Plate designed for? The Bob's Machine Versa Jac Manual Jack Plate provides manual adjustment for outboard motor positioning and offers 7.5 inches of lift. It is available with 4-inch, 6-inch, or 10-inch setbacks and is rated for engines up to 300 HP and motors weighing up to 625 lbs.
• Can the Bob's Machine Versa Jac Manual Jack Plate be upgraded to hydraulic operation? Yes. The Versa Jac is designed to be converted from manual to full hydraulic operation. The manual screw assembly can be removed using hand tools and replaced with a hydraulic cylinder kit, with a pump installed inside the boat.
• Can the Bob's Machine Versa Jac be adjusted while the boat is in the water? Yes. The Versa Jac Manual Jack Plate can be adjusted while the boat is in the water, allowing boaters to make adjustments for optimum results. The jack plate also features automotive grease fittings and adjustable tension rods.
• What setback options are available for the Bob's Machine Versa Jac Manual Jack Plate? The Bob's Machine Versa Jac is available in 4-inch, 6-inch, and 10-inch setback models. The 4-inch HD Versa weighs 40 lbs., the 6-inch Versa weighs 41 lbs., and the 10-inch Versa weighs 49 lbs.
• What are the mounting dimensions of the Bob's Machine Versa Jac? The transom-side mounting dimensions are 16-3/4 inches wide by 13-3/4 inches high. The motor-side overall width and mounting width are both 18-1/4 inches.
• What warranty is included with the Bob's Machine Versa Jac Manual Jack Plate? The Bob's Machine Versa Jac Manual Jack Plate includes a limited lifetime warranty on its structure. The product is also made in the USA and features a one-piece design without requiring setback spacers.
