Bob's Machine Shop Standard Series Hydraulic Jack Plate

Bob's Machine Standard Series Hydraulic Jack Plate

Proven quality since 1978, the Bob's Machine Standard Hydraulic Jack Plate is powerful, lightweight, and reliable. These jack plates are used to improve an outboard boat's speed, holeshot, fuel efficiency, and makes navigating in shallow waters easier. Standard Series Jack Plates were designed to keep the least amount of weight on the transom as possible by keeping the pump inside the boat. The result is a unit that is the lightest weight jack plate on the market. Unlike competitors, Bob's Jack Plates offer a one piece design and do not require setback spacers to achieve the proper setback. Standard Series Hydraulic Jack Plates are available in 4", 6", and 10" setbacks.

Jack plates come with the following: Jack plate, pump, wiring harness, 7' hose, control switch, and oil. Includes a limited lifetime warranty on structure, 60 month warranty on pump, and 12 month warranty on wire harness and solenoids.

Features:

Rated for 300HP, up to 625 lbs. motors

Provides 7.5" of lift

Pump inside boat

Automotive grease fittings

Adjustable tension rods

Pre-drilled for dual side mount Power Pole brackets

Manufactured with aluminum and stainless steel

Less weight on transom, pump stays dry in internal location

Large powerful motor can lift heavy outboards under full power

Made in the USA

Specifications:

Transom side mounting dimensions: 16-3/4" W x 13-3/4" H

Motor side mounting width: 18-1/4"

Mounting height: 13-3/4"

Part #

Model

Plate Weight

Max HP

Setback

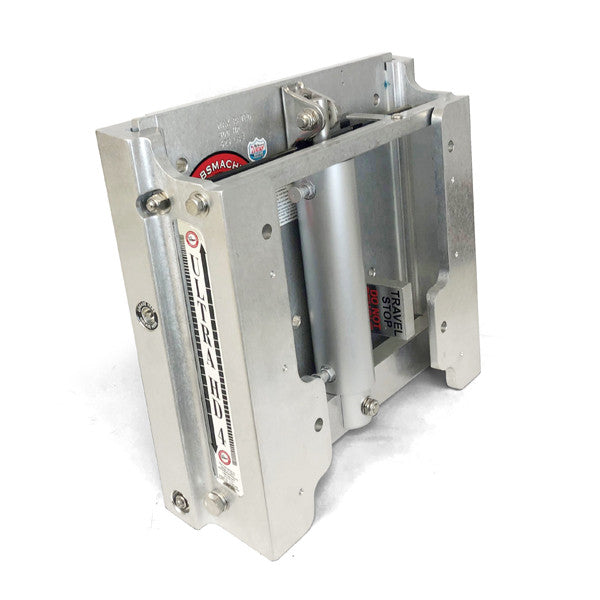

100-104100HD

Ultra HD

38 lbs.

300 HP

4"

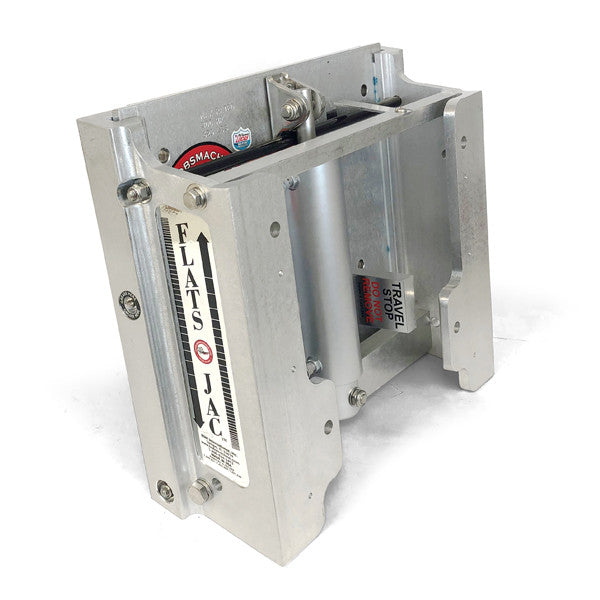

100-106000

Lightweight

40 lbs.

300 HP

6"

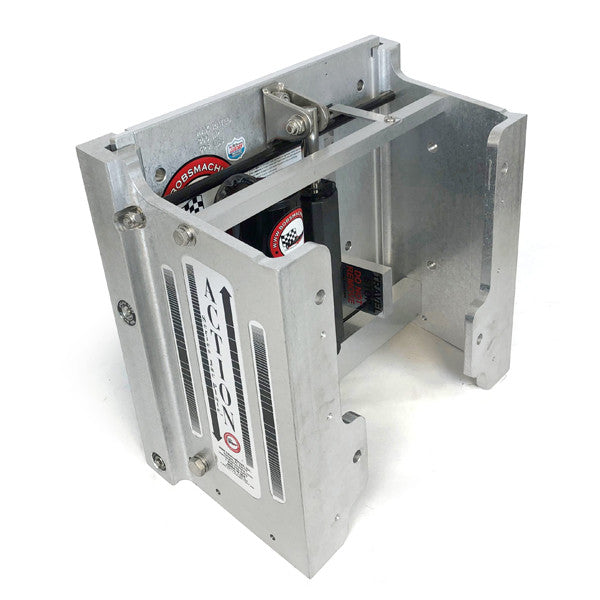

100-110000

Max. Jac

49 lbs.

300 HP

10"

Warranty:

5 Year Pump Warranty

Limited lifetime structure warranty against manufacturing defects

1 Year warranty on wire harness and solenoids

Frequently Asked Questions

• What is the Bob's Machine Standard Series Hydraulic Jack Plate designed for? The Bob's Machine Standard Series Hydraulic Jack Plate is designed to help improve outboard boat speed, holeshot, and fuel efficiency while making shallow-water navigation easier. Its internal pump helps keep weight off the transom and stays in a dry location inside the boat.
• What outboard motors is the Bob's Machine Standard Series Hydraulic Jack Plate rated for? The Standard Series Hydraulic Jack Plate is rated for outboard motors up to 300 HP and weighing up to 625 pounds. Verify your motor's horsepower and weight before selecting a jack plate configuration.
• How much lift does the Bob's Machine Standard Series Hydraulic Jack Plate provide? The Standard Series Hydraulic Jack Plate provides 7.5 inches of lift. The series is available in 4-inch, 6-inch, and 10-inch setback configurations to accommodate different mounting requirements.
• What setback options are available for the Bob's Machine Standard Series Hydraulic Jack Plate? The Standard Series is available with 4-inch, 6-inch, or 10-inch setback. The 4-inch Ultra HD model weighs 38 pounds, the 6-inch Lightweight model weighs 40 pounds, and the 10-inch Max. Jac model weighs 49 pounds. All three configurations are rated for up to 300 HP.
• What is included with the Bob's Machine Standard Series Hydraulic Jack Plate? Each jack plate package includes the jack plate, hydraulic pump, wiring harness, 7-foot hose, control switch, and oil. The jack plate also features automotive grease fittings, adjustable tension rods, and pre-drilled mounting locations for dual side-mount Power Pole brackets.
• What warranty does the Bob's Machine Standard Series Hydraulic Jack Plate include? The Standard Series includes a limited lifetime warranty on the structure against manufacturing defects, a 5-year warranty on the pump, and a 1-year warranty on the wire harness and solenoids.
