Boat Buckle Retract Transom T Dn 43" Pr

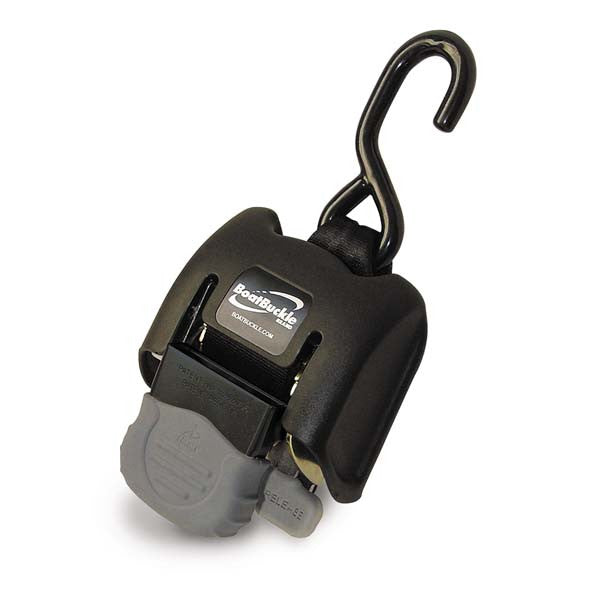

BoatBuckle Retractable Transom Tie Down Straps

The BoatBuckle F08893 Transom Tie-Downs are the ultimate tie-down system in convenience, style, and innovation. The BoatBuckle Transom Tie-Downs feature automotive-style webbing, anti-corrosive construction, and sturdy coated hooks. Built for durability, the two-inch, self-retracting web is made with seat belt quality polyester. The BoatBuckle G2 Transom Tie Down has a stronger breaking strength than competitors with 2500 lbs. for each strap. Easy to use with convenient one hand operation. These tie down straps are sold as a pair and are easy to install. A mounting bolt is included for permanent one-bolt installation.

Features:

Sleek, contoured styling

Comfortable Sur-Grip rubber coated handle and release lever

One-touch web release

Easy access dual release lever

Simple, one-hand operation

Adapts to most mounting angles

Includes installation hardware

Comes as a Pair

Specifications:

F08893 Standard

Length: Up to 43"

Break Strength: 2,500 lbs./each

SWL: 833 lbs./each

How to Install BoatBuckle Transom Tie Down Straps

Use trailer's existing mounting tab, or drill a 7/16" hole into the trailer frame.

Note: Before drilling, contact your trailer manufacturer to ensure proper and safe mounting locations.

Be sure the tie-down point is between 12"-41" from mounting hole. Do not mount otherwise.

Using bolt, washer and locknut provided, attach BoatBuckle to trailer frame.

Before tightening, the BoatBuckle should be swiveled left or right to ensure a straight-line pull to the transom eye.

Once in line, tighten securely. Do not over tighten bolt. Maximum recommended torque: 45 ft. lbs.

BoatBuckle should be mounted to trailer frame in such a position to enable the web to have has much straight-line pull as possible.

Web angle should not exceed a +/- 30 degree angle from vertical when in use.

Click to Download BoatBuckle Transom Tie Downs Installation Instructions
