Blue Sea WeatherDeck Waterproof Fuse Panel - 6 Switch

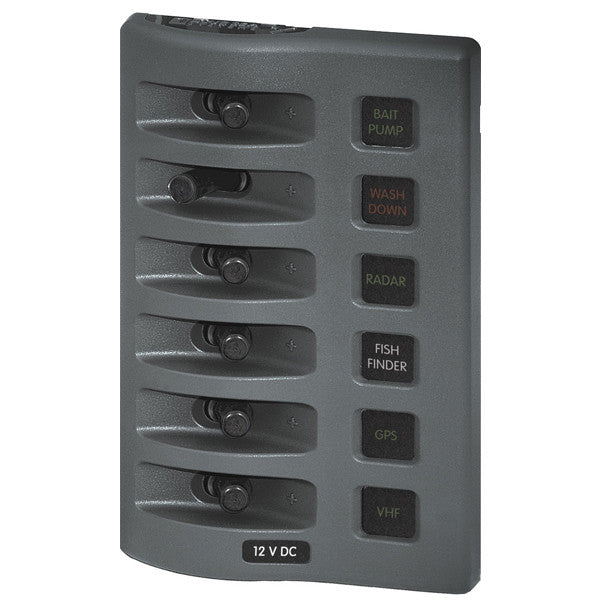

The Blue Sea WeatherDeck Waterproof Fuse Panel is designed for flybridge and open cockpit applications. This fuse panel is rated IP67 - temporary immersion for 30 minutes. This panel can be mounted in four different orientations.

Features:

Waterproof

Independent label backlighting circuit for remote switching and dimming

Integrated ATO/ATC fuse based circuit protection

Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

Positions: 6

Nominal Voltage: 12V DC

Circuit Protection: Fuse

Maximum Amperage: 15A @ 12V DC (per circuit)

Panel Cumulative Rating: 90A

Backlit Label: Bicolored LED

Backlighting Amperage: 10mA / Illuminated Circuit

Backlighting Voltage: 12V DC

Dimensions: 6" Height x 3.88" Width x 2.50" Depth

Click to Download Blue Sea 4306 Fuse Panel Installation Instructions

Click to Download Blue Sea 4306 Fuse Panel Cutout Template

Frequently Asked Questions

• What is the Blue Sea WeatherDeck Waterproof Fuse Panel - 6 Switch used for? The Blue Sea WeatherDeck Waterproof Fuse Panel - 6 Switch is designed for flybridge and open cockpit applications. It provides integrated ATO/ATC fuse-based circuit protection across six positions and can be mounted in four different orientations.
• Is the Blue Sea WeatherDeck Waterproof Fuse Panel waterproof? Yes. The Blue Sea WeatherDeck Waterproof Fuse Panel is rated IP67, which means it is specified for temporary immersion for up to 30 minutes. The panel is designed for flybridge and open cockpit applications.
• What type of circuit protection does the Blue Sea WeatherDeck Fuse Panel use? The panel uses integrated ATO/ATC fuse-based circuit protection. Each circuit has a maximum rating of 15A at 12V DC, while the panel has a cumulative rating of 90A.
• How do the LEDs indicate circuit status on the Blue Sea WeatherDeck Fuse Panel? The bicolored LEDs illuminate the circuit labels to indicate status. Red identifies an OFF circuit, green identifies an ON circuit, and no color indicates a blown circuit. No lights in any position likely indicate that there is no power to the panel.
• Does the Blue Sea WeatherDeck Fuse Panel have backlit labels? Yes. The panel uses bicolored LED backlighting for its circuit labels. An independent label backlighting circuit supports remote switching and dimming. The backlighting operates at 12V DC and uses 10mA per illuminated circuit.
• What are the specifications and dimensions of the Blue Sea WeatherDeck Waterproof Fuse Panel? The panel has six positions, operates at a nominal 12V DC, and has a 90A cumulative rating. Its dimensions are 6 inches high by 3.88 inches wide by 2.50 inches deep. It can be mounted in four different orientations.
