Blue Seas Weatherdeck 4 Switch Panel

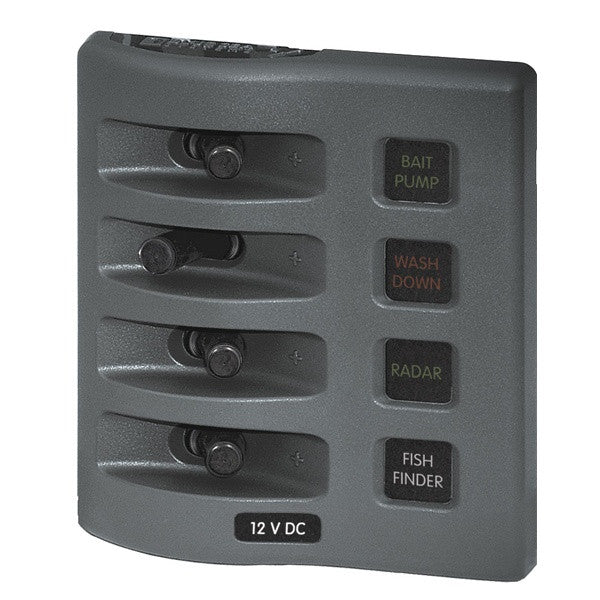

Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Switch

The Blue Sea WeatherDeck Waterproof Fuse Panel is designed for flybridge and open cockpit applications. This fuse panel is rated IP67 - temporary immersion for 30 minutes. This panel can be mounted in four different orientations.

Waterproof

Independent label backlighting circuit for remote switching and dimming

Integrated ATO/ATC fuse based circuit protection

Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. (No lights in any position likely indicate there is no power to the panel).

Specifications:

Positions: 4

Nominal Voltage: 12V DC

Circuit Protection: Fuse

Maximum Amperage: 15A @ 12V DC (per circuit)

Panel Cumulative Rating: 60A

Backlit Label: Bicolored LED

Backlighting Amperage: 10mA/Illuminated Circuit

Backlighting Voltage: 12V DC

Dimensions: 4.30" Height x 3.88" Width x 2.50" Depth

Click to Download Blue Sea 4304 Fuse Panel Installation Instructions

Click to Download Blue Sea 4304 Fuse Panel Cutout Template
