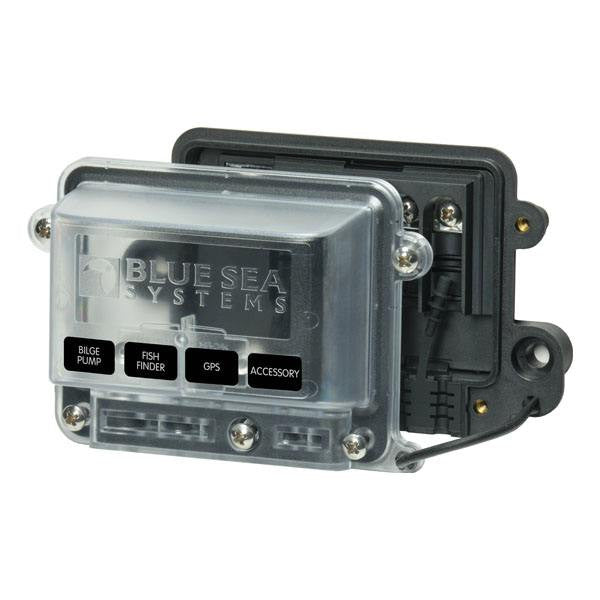

Blue Seas BusBar H2O 4 Gang Common Bus w/cvr

Blue Sea Systems 2356 Water-Resistant BusBar 100 Amp

The Blue Sea Systems Water-Resistant BusBar provides secure, water-resistant bussing for harsh environments. This busbar has a single side nesting design that allows for wire entry from one side to maximize space. Standard ring or fork type terminals allow for simple wiring with standard tools. The 2356 Busbar is ideal for positive distribution and for the collection of negative or AC ground circuits. The insulating cover meets ABYC/USCG insulation requirements.

This BusBar nests with other water-resistant 100A common busbars and ST-blade water-resistant fuse blocks for space saving wiring.

Features:

Includes insulating cover that meets ABYC/USCG insulation requirements

Accepts a wide range of wire sizes

Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used

Tin-plated copper busses and fuse clips

Includes four write-on circuit labels

Specifications:

Maximum Voltage: 300V AC | 48V DC

Continuous Rating: 100A AC | 100A DC

Bus Material: Tin-Plated Copper C11000

Mounting Holes: Accepts 1/4" (6mm) Screws

Terminal Screws: 4 x #8-32

Terminal Stud: 1 x #10-32

Wire Size (Input): (1) 8 AWG to 4 AWG

Wire Size (Load): (4) 16 AWG to 10 AWG
