Blue Seas Switch Panel 6-Position

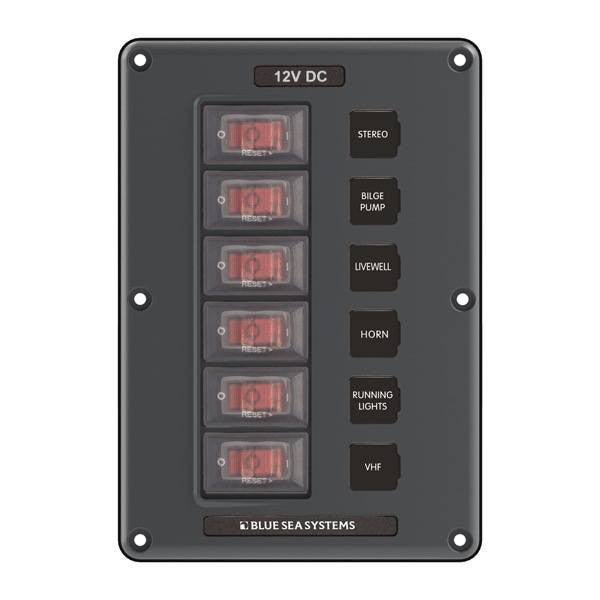

Blue Sea Switch Panel - 6-Position

This Blue Sea Switch Panel - 6-Position features a polycarbonate/ABS panel surface, making this switch panel flame retardant, UV-stabilized and corrosion resistant. It's fast-on circuit breaker connectors make it quick to wire while the silicon breaker boots and gasket protect against water ingress. The illuminated 15A circuit breakers provide switching, "ON" indication, and overcurrent protection.

Features:

Silicon Breaker Boots and Gasket Protects Against Water Ingress

Designed For Exposed Mounting Applications

Polycarbonate/ABS Panel Surface Is UV-Stabilized, Flame Retardant, and Corrosion Resistant

Terminals Screw To Bus Bars For Secure Connections

Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection

Fast-On Circuit Breaker Connectors Make It Quick To Wire

Low Profile Makes For Easy Installation In Tight Spaces

Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals

Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application

Includes Easy To Replace Set Of 15 Square Format Circuit Labels

Specifications:

Height: 6.625 in (168.28 mm)

Depth: 1.75 in (44.45 mm)

Width: 4.625 in (117.48 mm)

Maximum Amperage: 45A

Nominal Voltage: 12V DC

Hardware: Stainless Steel #6 x 5/8" Mounting Screws

Terminal Type: 1/4" Male Quick Connect

Positions: 6

Color: Gray

Ring Terminal Size: M5 (#10)
