Blue Seas Swch Panel 4 Pos Sckt/Usb

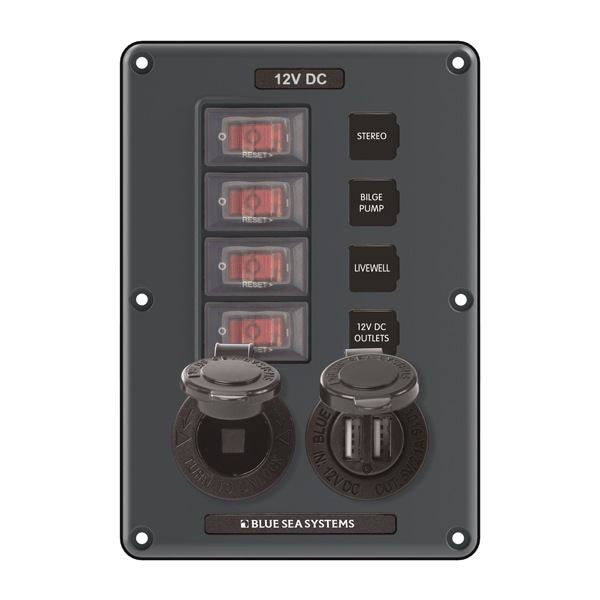

Blue Sea Switch Panel - 4-Position w/ Socket & USB

This Blue Sea Switch Panel - 4-Position w/ Socket & USB features industry-standard sizes and mounting that allows the panels to be easily retrofitted in an existing application. It also features a 12-volt dual socket and USB charger. The silicon breaker boots and gasket protect against water ingress. With a polycarbonate/ABS panel surface, this switch panel is flame-retardant, UV-stabilized, and corrosion resistant.

Features:

Polycarbonate/ABS Panel Surface Is UV Stabilized, Flame Retardant, and Corrosion Resistant

12-Volt Dual Socket

USB Charger

Low Profile Makes For Easy Installation In Tight Spaces

Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application

Silicon Breaker Boots and Gasket Protects Against Water Ingress

Designed For Exposed Mounting Applications

Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals

Terminals Screw To Bus Bars For Secure Connections

Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection

Includes An Easy To Replace Set Of 15 Square Format Circuit Labels

Fast-On Circuit Breaker Connectors Make It Quick To Wire

Specifications:

Depth: 1.75 in (44.45 mm)

Height: 6.625 in (168.28 mm)

Width: 4.625 in (117.48 mm)

Positions: 4

Maximum Amperage: 45A

Color: Gray

Nominal Voltage: 12V DC

Terminal Type: 1/4" Male Quick Connect

Hardware: Stainless Steel #6 x 5/8 Mounting Screws

Ring Terminal Size: M5 (#10)
