Blue Seas Swch Panel 4 Pos-Gray

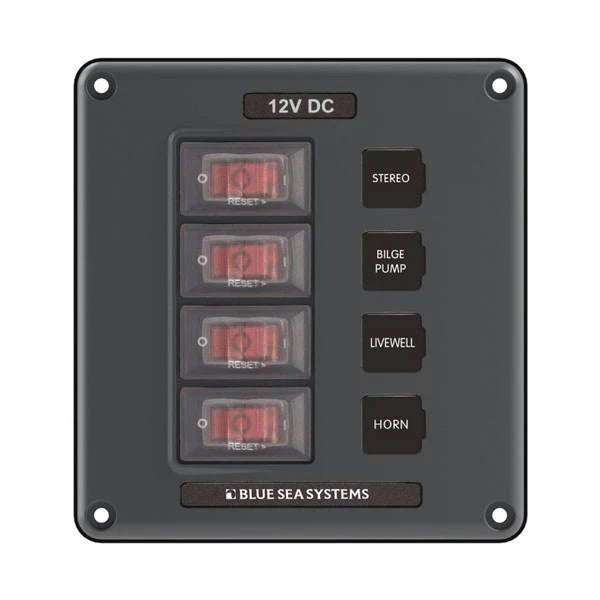

Blue Sea Switch Panel - 4-Position

This Blue Sea Switch Panel - 4-Position features illuminated 15A circuit breakers that provide switching, "ON" indication, and overcurrent protection. It's fast-on circuit breaker connectors make it quick to wire while the silicon breaker boots and gasket protect against water ingress. With a polycarbonate/ABS panel surface, this switch panel is UV-stabilized, flame retardant and corrosion resistant.

Features:

Fast-On Circuit Breaker Connectors Make It Quick To Wire

Polycarbonate/ABS Panel Surface Is UV-Stabilized, Flame Retardant, and Corrosion Resistant

Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection

Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals

Terminals Screw To Bus Bars For Secure Connections

Silicon Breaker Boots and Gasket Protects Against Water Ingress

Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application

Includes Easy To Replace Set Of 15 Square Format Circuit Labels

Low Profile Makes For Easy Installation In Tight Spaces

Designed For Exposed Mounting Applications

Specifications:

Height: 5.0 in (127 mm)

Depth: 1.75 in (44.45 mm)

Terminal Type: 1/4" Male Quick Connect

Color: Gray

Maximum Amperage: 45A

Positions: 4

Hardware: Stainless Steel #6 x 5/8" Mounting Screws

Ring Terminal Size: M5 (#10)

Nominal Voltage: 12V DC
