Blue Seas St Clb Cir Brkr Blk 6 Cir

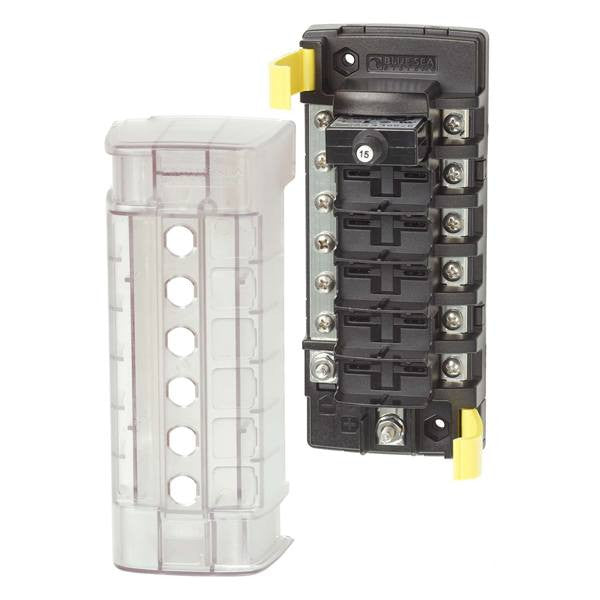

Blue Sea Systems ST CLB Circuit Breaker Block - 6 Position w/ Negative Bus

The Blue Sea Systems ST CLB Circuit Breaker Block uses a compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse. Includes a clear insulating cover with square format label recesses.

Features:

Quick connect clips allow circuit breaker to snap easily into place

Tin-plated copper buses and screw terminals

Cover satisfies ABYC/USCG insulation requirements

Easy to open clip on cover

Breakouts allow wire access in two directions

Accepts ring terminals

Accepts square labels

Specifications:

Circuits: 6

Maximum Amperage: 100A (per block)  |  32A (per circuit)

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4) or #8 Nut

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer

Height: 6.69"

Weight: 0.75lb
