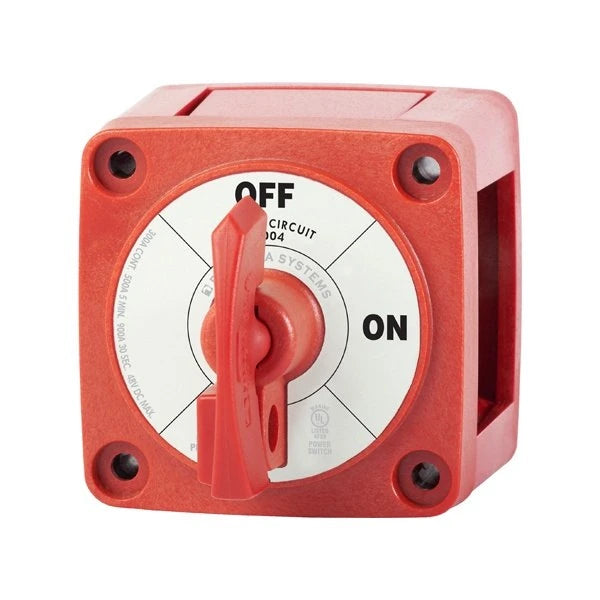

Blue Seas M Battery Switch Locking Red

Blue Sea "M" Battery Single Circuit ON/OFF Switch w/ Locking Key

This Blue Sea "M" Battery Single Circuit ON/OFF Switch w/ Locking Key features a one-piece terminal stud design that never loosens over time. It offers breakout tabs that allow wire access in any direction and has an isolating cover that protects rear contacts. With one-piece stainless flange nuts, this switch ensures safe and secure connections. The tin-plated copper studs allow for maximum conductivity and corrosion resistance.

Features:

Isolating Cover Protects Rear Contacts

One-Piece Terminal Stud Design Never Loosens Over Time

Tin-Plated Copper Studs For Maximum Conductivity and Corrosion Resistance

Breakout Tabs Allow Wire Access In Any Direction

7/8" (22 mm) Stud Length Accepts Multiple Cable Terminals

Studs Accept 3/8" (M10) Ring Terminals

One-Piece Stainless Flange Nuts Ensure Safe and Secure Connections

300 Amps Continuous Rating For Outboards and Small Gasoline Or Diesel Engines

Specifications:

Continuous Rating: 300A

Weight: 0.65 lb (0.29 kg)

Color: Red

Intermittent Rating: 500A

Cranking Rating 30 Seconds: 900A

Maximum Voltage: 48V DC
