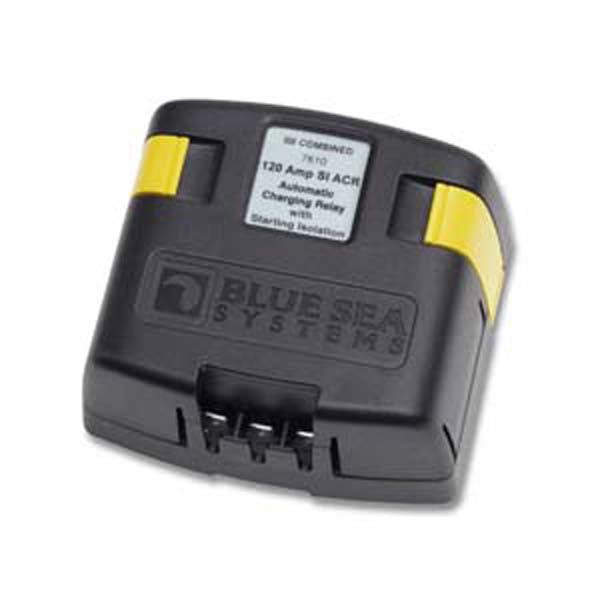

Blue Seas Solenoid Auto Charging Relay

Blue Sea Systems SI Series Automatic Charging Relay

Features:

Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking

Designed for 12 or 24 volt systems

12/24 volt auto ranging voltage input

Hermetically sealed contacts/vaporproof

Waterproof rated IP67 - temporary immersion for 30 minutes

Ignition protected - safe for installation aboard gasoline powered boats

Remote LED output indicates relay state away from ACR

Supports high-output alternators up to 120 Amperes

Dual sensing

Continuous Rating 120 Amps

Intermittent Rating 210 Amps

Inrush Rating 280 Amps

Closed Current Draw 175mA@12 Volts

115mA@24 Volts

Open Current Draw 15mA

Maximum Cable Size 1/0 AWG

Terminal Stud Size 3/8"-16 (accepts M10 ring terminal)

Maximum Torque 140 in-lbs

Relay Contact Position: Combine (30 sec.) 13.6 Volts@12 Volt and 27.2 Volts@24 Volt

Relay Contact Position: Combine (2 min.) 13.0 Volts@12 Volt and 26.0 Volts@ 24 Volt

Relay Contact Position: Open Low (10 sec.) 12.35 Volts@12 Volt and 24.7 Volts@ 24 Volt

Relay Contact Position: Open Low (30 sec.) 12.75 Volts@ 12 Volt and 25.5 Volts@ 24 Volt

Relay Contact Position - Open High 16.0 Volts@12 Volt and 30.0 Volts@24 Volt
