Blue Seas Short Stop Circuit Breaker

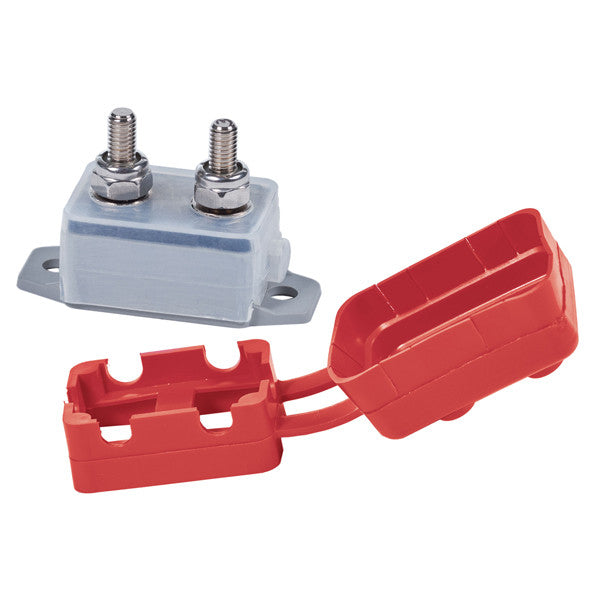

Blue Sea Short Stop Circuit Breaker

This Blue Sea Short Stop Circuit Breaker features an IP64 water resistant boot that protects against dust and splashing water. The stainless steel lock nuts make for secure connections while the corrosion resistant material allows the circuit breaker to withstand harsh environments. The push-to-reset operation only disconnects when tripped.

Features:

IP64 Water Resistant Boot Protects Against Dust and Splashing Water

Stainless Steel Lock Nuts For Secure Connections

Corrosion Resistant Material To Withstand Harsh Environments

Use A Circuit Breaker Instead Of A Fuse

Push-To-Reset Operation Only Disconnects When Tripped

Includes Red Insulating Boot

Specifications:

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Maximum Voltage: 28V DC

Terminal Stud: #10-32

Weight: 0.06 lb (0.03 kg)

Amperage: 10A DC

Terminal Stud Torque: 20 in-lb (2.26 Nm)

Interrupt Capacity: 2500A @ 28V DC

Circuit Breaker Type: Thermal Trip, Manual Reset
